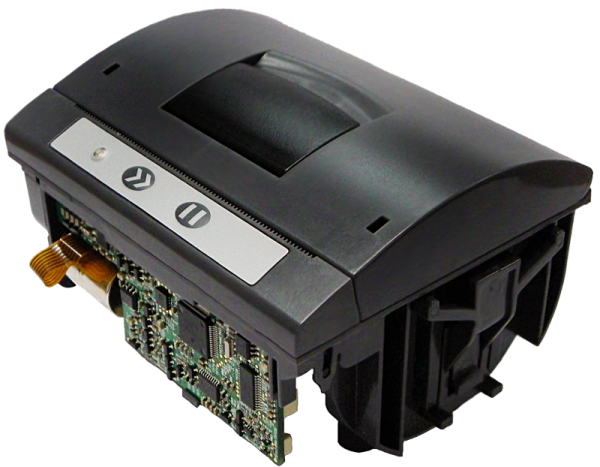

EPM307-HRS

PATENTED OPENING SYSTEM

Caractéristiques

  • Integrated keyboard wtih paper feed, ON-OFF buttons and LED
  • Powerful text and graphic printing modes
  • Ultra compact design
  • Printer setup parameters can be saved in Flash
  • Sleep mode
  • Full control over printing quality/speed (up to 105mm/s)
  • Easy firmware upgrades
  • Single power supply
  • Software programmable consumption
  • Two communication ports (Serial and USB 2.0)

Applications

  • Automotive
  • Cash registers
  • Data terminal devices
  • Hand held terminals
  • ID automation
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals

Caractéristiques techniques

Printing method
Thermal
Number of dots
576
Resolution (dots/mm)
8
Printing width (mm)
72
Paper width (mm)
80
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
105
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
4,0 V to 9,5 V
Dot resistance (Ohm)
NA
Energy per dot (mJ)
NA
Stepper motor (Ohm)
Double Bipolar (12)
Weight (g)
110
Life/reliability
100km / 100M pulses
Operating temperature (°C)
-5 to 50 non cond.
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
104,2 x 82,2 x 66,3
Cutter
Tear bar
Paper roll diam. max. (mm)
60
Character set
3 resident + downlodable
Character size
8x16, 7x16, 12x20
Characters per line (max.)
64, 32, 16/72, 36, 18/44, 22, 11
Interfaces
RS232, USB
Graphics
Variable width and offset/double width and height
Barcodes
10 barcodes: normal and rotated 90°
Windows drivers
Windows, Linux
Label/Black mark detection
Yes
Zero power mode (sleep mode)
Yes
Auto wake-up on received data
Yes
Functional keyboard
Yes
