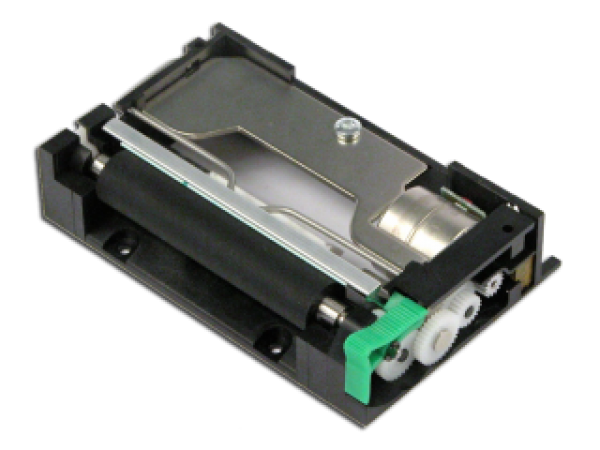

CP290

COMPACT DESIGN

Caractéristiques

Compact design (20 mm height) and very rugged
Single flex-cable houses all wiring
Front or bottom paper loading
Printing speed up to 150 mm/s
CP290 available in a two station option with paper widths of 2x29 or 2x32 mm

Applications

Cash registers
EFT POS
Fiscal printers
Gaming and lottery
Measuring instruments and analysers
Medical equipment
Ticketing
Weighing scales

Caractéristiques techniques

Printing method: Thermal
Number of dots: 432
Resolution (dots/mm): 8
Printing width (mm): 54
Paper width (mm): 2x29 or 2x32 (DS)/ 60 or 66
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 100
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch
Voltage range (Logic | Head): 5 ± 5% V | 10.8-26.4 V

Dot resistance (Ohm): 1500 ± 10%
Energy per dot (mJ): 0.25
Stepper motor (Ohm): Bipolar (13)
Weight (g): 115
Life/reliability: 50 km/100M pulses
Operating temperature (°C): 0 to +50
Operating humidity (%): 20 to 90 non cond.
Dimensions (WxDxH mm): 91x54.5x20
Cutter: Optional
Controller board: Optional
Interfaces: No
