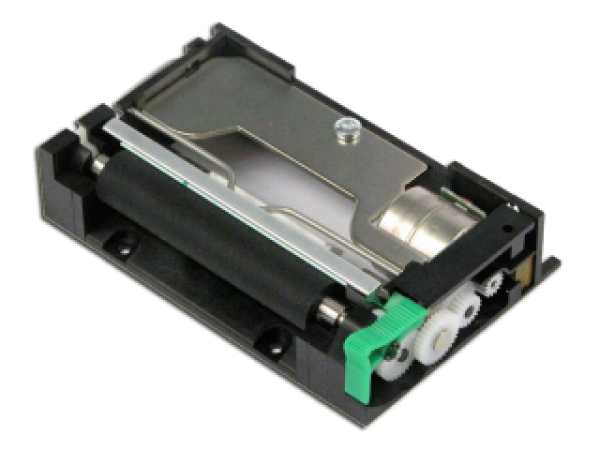

CP295

COMPACT DESIGN

Caractéristiques

CP290 available in a two station option with paper widths of 2x29 or 2x32mm
Front or bottom paper loading
Single flex-cable houses all wiring
Compact design (20 mm height) and very rugged

Applications

Cash registers
EFT POS
Fiscal printers
Gaming and lottery
Measuring instruments and analysers
Medical equipment
Ticketing
Weighing scales

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 2x29 or 2x32 (DS)/ 60 or 66
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 80
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch
Voltage range (Logic | Head): 5 ± 5% V | 4.2-8.5 V

Dot resistance (Ohm): 142± 4%
Energy per dot (mJ): 0.31
Stepper motor (Ohm): Bipolar (13)
Weight (g): 110
Life/reliability: 50 km/ 100M pulses
Operating temperature (°C): 0 to + 50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 91x54.5x20
Cutter: Optional
Controller board: Optional
Interfaces: No
