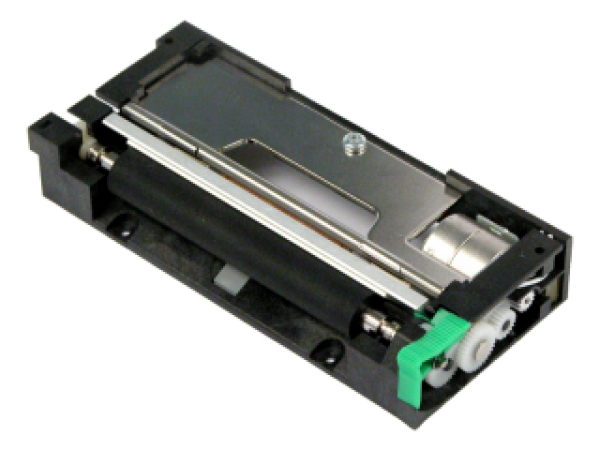

CP305

COMPACT BUT VERY RUGGED DESIGN

Caractéristiques

Available as a two station option with paper roll widths of 2x39
Front or bottom paper loading
Compact but very rugged design (20 mm high, only 120 mm wide and 55 mm deep)

Applications

Cash registers
EFT POS
Fiscal printers
Gaming and lottery
Measuring instruments and analysers
Medical equipment
Ticketing
Weighing scales

Caractéristiques techniques

Printing method: Thermal
Number of dots: 576
Resolution (dots/mm): 8
Printing width (mm): 72
Paper width (mm): 80
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 75
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch

Voltage range (Logic | Head): 5 ±5% V | 4.2-8.5 V
Dot resistance (Ohm): 176 ± 3%
Energy per dot (mJ): 0.31
Stepper motor (Ohm): Bipolar (13)
Weight (g): 135
Life/reliability: 100km/ 100M pulses
Operating temperature (°C): -10 to +60
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 120x55x20
Cutter: Optional
