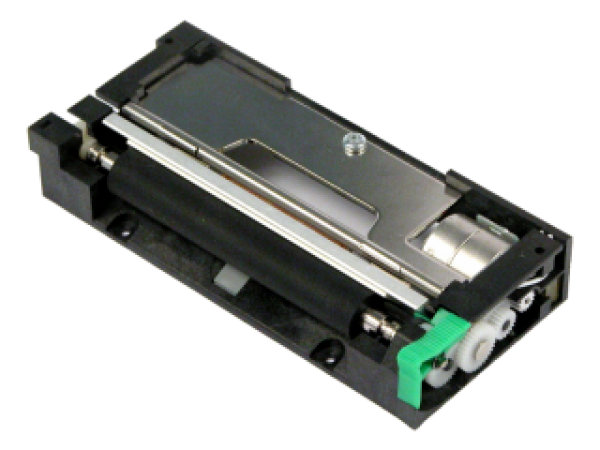

CP324-S

COMPACT DESIGN

Caractéristiques

Front or bottom paper loading
Low noise
High speed printing for gaming applications
24 Volts
Compact design (max 20 mm height) and very rugged

Applications

Cash registers
EFT POS
Fiscal printers
Gaming and lottery
Measuring instruments and analysers
Medical equipment
Ticketing
Weighing scales

Caractéristiques techniques

Printing method: Thermal
Number of dots: 640
Resolution (dots/mm): 8
Printing width (mm): 80
Paper width (mm): 82.5
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 120
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch

Voltage range (Logic | Head): 5 ± 5% V | 18-26.5 V
Dot resistance (Ohm): 800 ± 3%
Energy per dot (mJ): 0.16
Stepper motor (Ohm): Bipolar (10)
Weight (g): 150
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): 0 to +50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 120x55x20
Cutter: Optional
