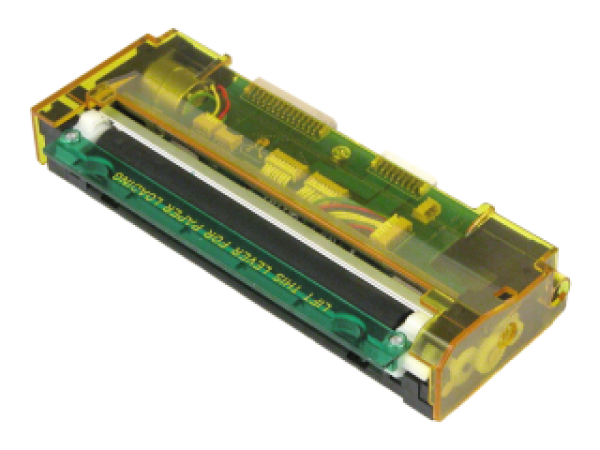

CP405

VERY COMPACT DESIGN

Caractéristiques

Very compact design - printer is only 27 mm high
2 station option available for paper widths 56+56 or 72+40 mm
No loose wiring - double flex connectors house all wires

Applications

ATM machines
Automotive
Cash registers
EFT POS
Fiscal printers
Kiosks
Measuring instruments and analysers
Medical equipment
Parking meters

Caractéristiques techniques

Printing method: Thermal
Number of dots: 832 / 2x400 or 528+272
Resolution (dots/mm): 8
Printing width (mm): 104/ 2x48 or 32+64
Paper width (mm): 114 / 2x56 or 40+72
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 60
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch

Voltage range (Logic | Head): 2.7-5.25 V | 3-7.2 V
Dot resistance (Ohm): 123 ± 4%
Energy per dot (mJ): 0.15
Stepper motor (Ohm): Bipolar (13)
Weight (g): 260
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): 0 to +50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 156x70x27
Cutter: Optional
