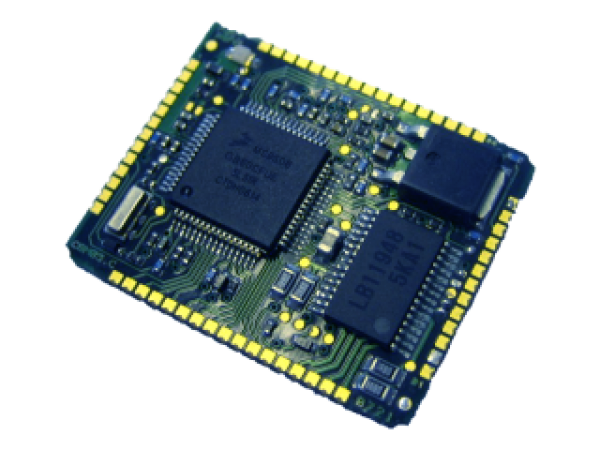

CSM05

CHIP SET MODULE

CSM05
CSM05
Demander un devis

Caractéristiques

  • 3 default communication ports: RS232 TTL, General purpose parallel interface, I2C Interface
  • Printing speed up to 90 mm/s (depending on the printer mechanisms)
  • Wide power supply range (4V to 9.5V)
  • Easy hardware configuration
  • Drives any APS 5V mechanisms

Applications

  • Cash registers
  • EFT POS
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals

Caractéristiques techniques

Printing method
Thermal dot line printing
Number of dots
832 max
Printing speed (mm/s)
up to 90 - depending on the printer mechanism
Paper detection
Opto sensor
Temperature detection
In board thermistor and mechanism control
Voltage range (Logic | Head)
4 V to 9.5 V
Operating temperature (°C)
-20 to +50
Character set
3 resident + downloadable
Character size
8x16, 7x16, 12x20
Characters per line (max.)
48, 24, 12/54, 27, 13/32, 16, 8
Interfaces
RS232TTL, RS232C, Centronic
Graphics
Variable width and offset/double width and height
Barcodes
11 Barcodes: normal and rotated 90°
Windows drivers
XP / NT / 2000 / Linux
Label/Black mark detection
Yes
Functional keyboard
Optional
