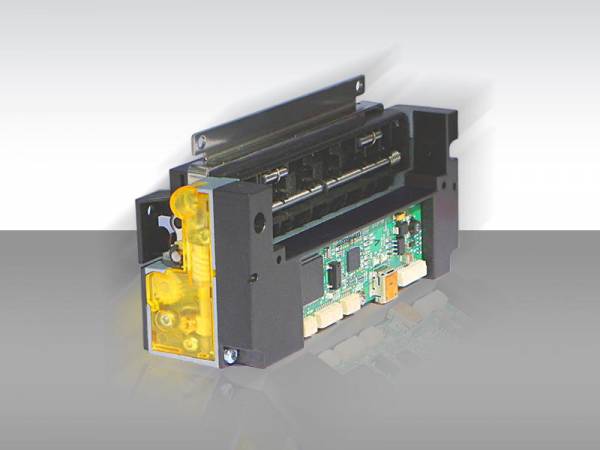

EasyLoading Compact Printer (ECP 3)
3 INCHES
Référence : ECP-324-HRS
Caractéristiques
- New family easy loading compact printers for paper width 80 to 82.5mm, 24V, 300dpi
- Very compact size, easy to integrate into your design
- Rigid Die cast frame allows better thermal conductivity
- Integrated powerful controller board
- High printing speed (250mm/sec.)
- Very silent operation and high print quality thanks to its innovative linear gear train
- Xtremely straight paper path allowing thick paper or label printing
- Powerful double stepper motor
- Complete printing solution
- Powerful text / Graphic Modes and 2D barcodes
- Hardware QR barcode support
- Windows/Linux/Android Drivers
Applications
- ATM machines
- Data terminal devices
- Gaming and lottery
- Gas pumps
- ID automation
- Kiosks
- Label printers
- Medical equipment
- Parking meters
- Ticketing
- Vending machines
Caractéristiques techniques
- Printing method
- Thermal
- Number of dots
- 960
- Resolution (dots/mm)
- 12
- Printing width (mm)
- 81,2
- Paper width (mm)
- 80 to 82.5
- Max. paper thickness (um)
- Up to 120
- Paper loading
- Easy Loading
- Printing speed (mm/s)
- 250
- Paper detection
- Opto sensor
- Temperature detection
- Thermistor
- Head-up or Cover-open detection
- Mechanical switch
- Voltage range (Logic | Head)
- 5V or 3.3V / 24 V ± 10%
- Dot resistance (Ohm)
- 800 ± 3 %
- Weight (g)
- 300
- Life/reliability
- 150 km/100M pulses/2 M cuts
- Operating temperature (°C)
- -25 to +70 °C
- Operating humidity (%)
- 10 to 90 (no condensation)
- Dimensions (WxDxH mm)
- 113,4 x 60,3 x 40,5
- Cutter
- Guillotine
- Character set
- 3 resident + downloadable
- Character size
- 8x16, 7x16, 12x20
- Interfaces
- RS232C, USB
- Barcodes
- UPC A-E, EAN 13-8, Code 39, ITF 2/5, Codabar, Code 128 A-B-C, PDF 417, QR code
- Windows drivers
- Windows, Linux
- Label/Black mark detection
- Left or right
- Zero power mode (sleep mode)
- Yes
- Auto wake-up on received data
- Yes
- Functional keyboard
- Yes
