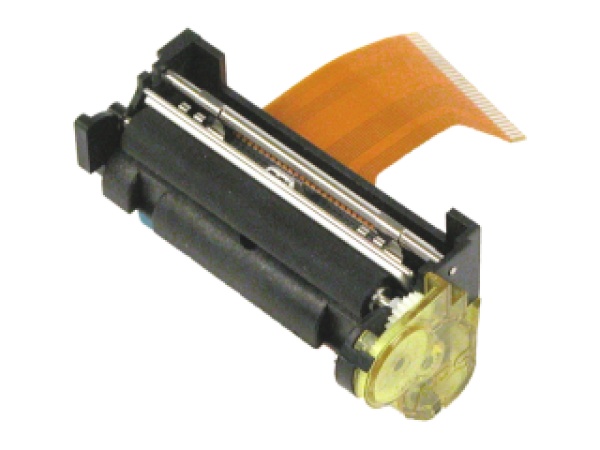

ELM205-LV

LOW WEIGHT HOUSING DESIGN

Caractéristiques

  • Compact design - low weight housing design
  • High reliability due to its patented easy loading design
  • Print speed up to 75 mm/s for LV and up to 90 mm/s for HS printers
  • Ergonomic design - centered paper path allows uniform and aesthetic

Applications

  • Automotive
  • Calculators
  • Data terminal devices
  • EFT POS
  • Fiscal printers
  • Hand held terminals
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals
  • Taxi meters

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
75
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
2.7-5.5 V | 2.7-9.5 V
Dot resistance (Ohm)
123 ± 3%
Energy per dot (mJ)
0.16
Stepper motor (Ohm)
Bipolar (12)
Weight (g)
40
Life/reliability
100km/ 100M pulses
Operating temperature (°C)
-20 to +60
Operating humidity (%)
10 to 90 non cond.
Dimensions (WxDxH mm)
67.5x30.7x30.8
