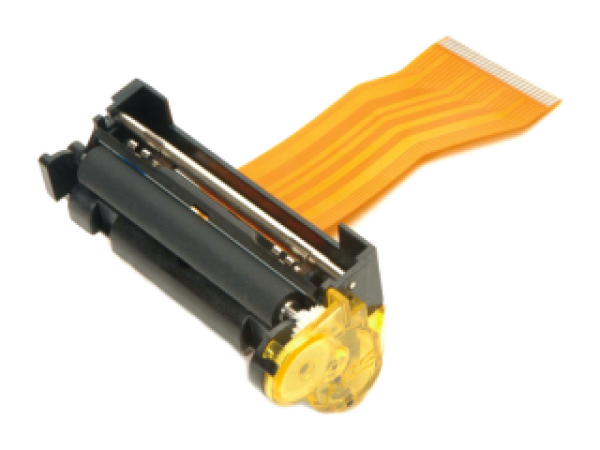

ELM208-HS

LOW WEIGHT HOUSING DESIGN

Caractéristiques

Compact design - low weight housing design
High reliability due to its patented easy loading design
Print speed up to 75 mm/s for LV and up to 90 mm/s for HS printers
No loose wiring - a single LONG flex-cable houses all wiring
Ergonomic design - centered paper path allows uniform and aesthetic

Applications

Automotive
Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Taxi meters

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58
Max. paper thickness (um): 80
Paper loading: Easy Loading
Printing speed (mm/s): 120
Paper detection: Opto sensor
Temperature detection: Thermistor

Head-up or Cover-open detection: Opto sensor
Voltage range (Logic | Head): 2.7-5.5 V | 5.5-9.5 V
Dot resistance (Ohm): 165 ± 3%
Energy per dot (mJ): 0.16
Stepper motor (Ohm): Bipolar (12)
Weight (g): 40
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): -20 to +60
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 67.5x30.7x30.8
