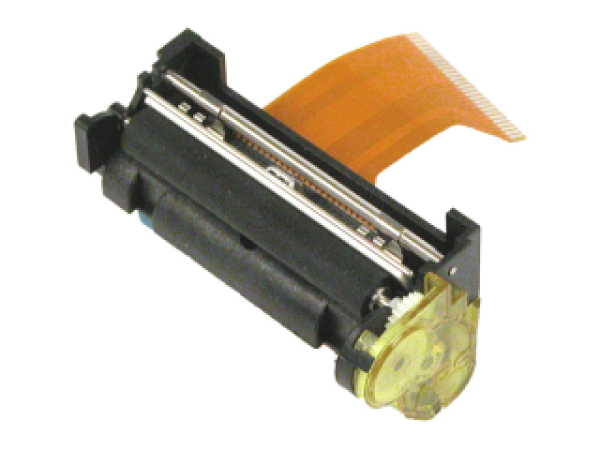

ELM224-X3

ULTRA HIGH RESOLUTION

Caractéristiques

  • Usable at 12 V with printing speed of 150 mm/s
  • Variable power
  • High printing speed up to 120 mm/s for 5 V mechanism and up to 200 mm/s for 24 V mechanism
  • Patented compact easy loading design
  • No loose wiring - single flex cable
  • Ultra high resolution - 300 dpi

Applications

  • Automotive
  • Calculators
  • Data terminal devices
  • EFT POS
  • Fiscal printers
  • Hand held terminals
  • ID automation
  • Measuring instruments and analysers
  • Medical equipment
  • Taxi meters

Caractéristiques techniques

Printing method
Thermal
Number of dots
576
Resolution (dots/mm)
12
Printing width (mm)
48.7
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
200
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
3.0-5.25 V | 24 typical, 26.5 V max
Dot resistance (Ohm)
800 ± 3%
Energy per dot (mJ)
0.11
Stepper motor (Ohm)
Bipolar (12)
Weight (g)
45
Life/reliability
100km/ 100M pulses
Operating temperature (°C)
-5 to +50
Operating humidity (%)
10 to 90 non cond.
Dimensions (WxDxH mm)
67.5x30.7x30.8
