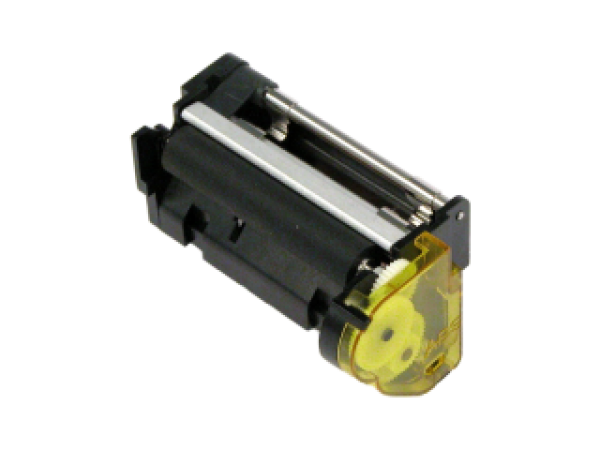

ELM2071

HIGH PRINT SPEED

Caractéristiques

  • Label / thick paper path design
  • Double opto available
  • 200 and 300 dpi resolution
  • Easy loading paper
  • High print speed
  • 5 Volts
  • 2 inches paper width

Applications

  • Cash registers
  • EFT POS
  • Fiscal printers
  • Gaming and lottery
  • Label printers
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals
  • Ticketing
  • Weighing scales

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
60 or 63
Max. paper thickness (um)
120
Paper loading
Easy Loading
Printing speed (mm/s)
95
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
2.7-5.25 V | 4.5-9.5 V
Dot resistance (Ohm)
176 ± 4%
Energy per dot (mJ)
0.13
Stepper motor (Ohm)
Bipolar (12)
Weight (g)
95
Life/reliability
50km/ 100M pulses
Operating temperature (°C)
-10 to +60
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
82.2x48.4x42.4
