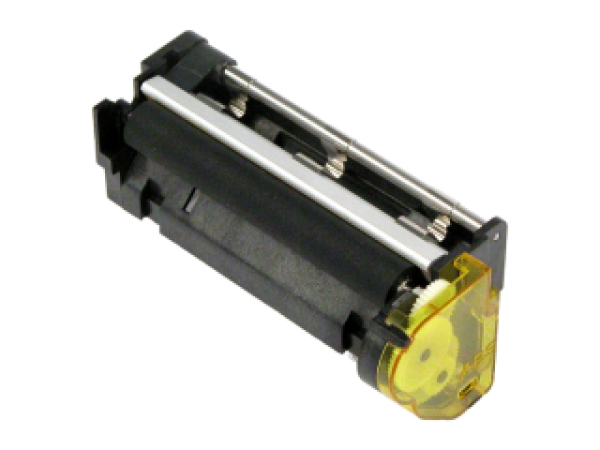

ELM3071

HIGH PRINT SPEED

Caractéristiques

Double opto available
Label/thick paper path design
5 Volts
Easy loading paper
3 inches paper width

Applications

Cash registers
EFT POS
Fiscal printers
Gaming and lottery
Label printers
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Ticketing
Weighing scales

Caractéristiques techniques

Printing method: Thermal
Number of dots: 576
Resolution (dots/mm): 8
Printing width (mm): 72
Paper width (mm): 82.5 +0/-1
Max. paper thickness (um): 120
Paper loading: Easy Loading
Printing speed (mm/s): 75
Paper detection: Opto sensor
Temperature detection: Thermistor

Head-up or Cover-open detection: Opto sensor
Voltage range (Logic | Head): 2.7-5.25 V | 4.5-9.5 V
Dot resistance (Ohm): 176 ± 4%
Energy per dot (mJ): 0.13
Stepper motor (Ohm): Bipolar (12)
Weight (g): 115
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): -10 to +60
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 105.3x48.4x42.4
