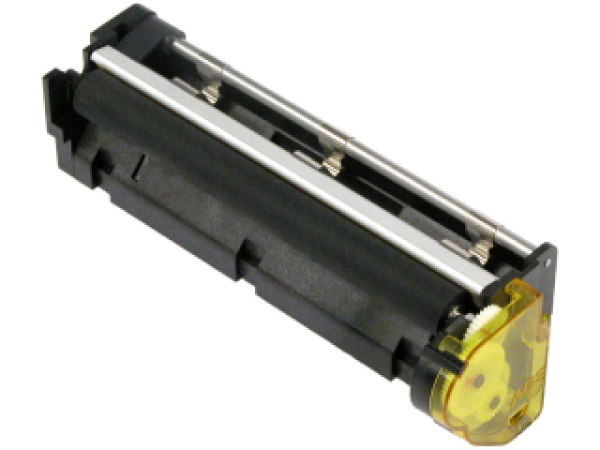

ELM4071

HIGH PRINT SPEED

Caractéristiques

4 inches paper width
5 Volts
High print speed
Easy loading paper
Label/thick paper path design
Double opto available

Applications

Cash registers
EFT POS
Fiscal printers
Gaming and lottery
Label printers
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Ticketing
Weighing scales

Caractéristiques techniques

Printing method: Thermal
Number of dots: 832
Resolution (dots/mm): 8
Printing width (mm): 104
Paper width (mm): 114 +0/-1
Max. paper thickness (um): 120
Paper loading: Easy Loading
Printing speed (mm/s): 60
Paper detection: Opto sensor
Temperature detection: Thermistor

Head-up or Cover-open detection: Opto sensor
Voltage range (Logic | Head): 2.7-5.25 V | 4.5-9.5 V
Dot resistance (Ohm): 176 ± 4%
Energy per dot (mJ): 0.13
Stepper motor (Ohm): Bipolar (12)
Weight (g): 140
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): -10 to +60
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 137.1x48.4x42.4
