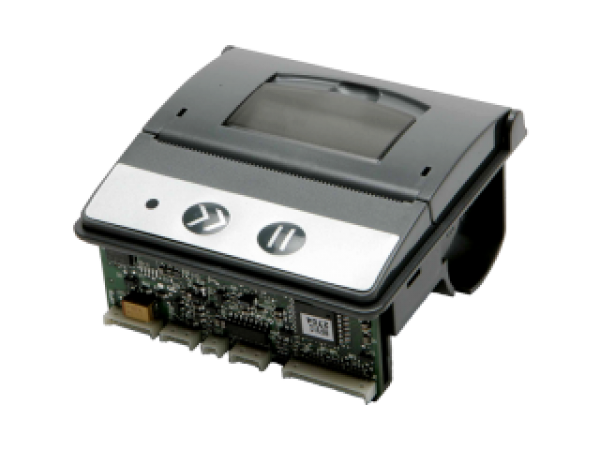

EPM203-HRS

PATENTED OPENING SYSTEM

Caractéristiques

Clip-on EPM 200 Series
Printing speed up to 90 mm/s
Wide power supply range (4V to 8,5V)
Patented opening system
3 default communication ports (RS232 C, RS232 TTL, USB)
Powerful text printing modes
Ultra light
Standard APS extension connector: I2C, Vbat, 3.3V, GPIO, A/D Convertors
Powerful graphic modes
Three internal fonts
Automatic paper loading
Sleep mode
Windows, Linux drivers
Diameter paper roll 32mm

Applications

utomotive
Data terminal devices
EFT POS
Hand held terminals
ID automation
Measuring instruments and analysers
Medical equipment
Portable printers and terminals

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58 +0/-1
Max. paper thickness (um): 80
Paper loading: Easy Loading
Printing speed (mm/s): 90
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Opto sensor
Voltage range (Logic | Head): Single 4.0-8.5 V
Dot resistance (Ohm): 176 ± 3%
Stepper motor (Ohm): Bipolar (12)
Weight (g): 120
Life/reliability: 100km/ 100M pulses

Operating temperature (°C): -5 to +50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 76.8x77.4x43.5
Cutter: Tear bar
Paper roll diam. max. (mm): 32
Character set: 3 resident + downloadable
Character size: 8x16, 7x16, 12x20
Characters per line (max.): 48, 24, 12/54, 27, 13/32, 16, 8
Interfaces: RS 232C, RS 232 TTL, USB
Graphics: Variable width and offset/double and quadruple width and height, underlining, inverse video, 3 justifications
Barcodes: 11 barcodes: normal and rotated 90°
Windows drivers: XP / NT / 2000 / Linux
Label/Black mark detection: Yes
Zero power mode (sleep mode): Yes
Auto wake-up on received data: Yes
Functional keyboard: Yes
