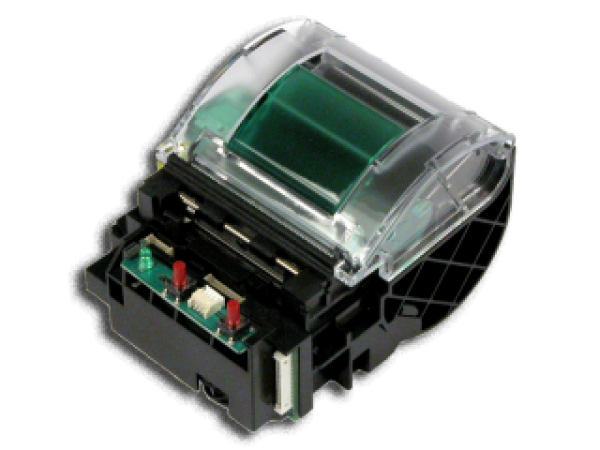

EPM205-HRS

WIDE POWER SUPPLY RANGE

Caractéristiques

Automatic paper loading
Powerful graphic modes
Three internal fonts
Windows, Linux drivers
Sleep mode
Powerful text printing modes
Standard APS extension connector: I2C, Vbat, 3.3V, GPIO, A/D Convertors
Wide power supply range (4.0 V to 8.5V)
3 default communication ports
Patented opening system

Applications

Automotive
Cash registers
Data terminal devices
EFT POS
Hand held terminals
ID automation
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Taxi meters

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58
Max. paper thickness (um): 80
Paper loading: Easy Loading
Printing speed (mm/s): 90
Voltage range (Logic | Head): 4.0 to 8.5 V
Weight (g): 130
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): 0 to +50
Operating humidity (%): 20 to 85 non cond.

Dimensions (WxDxH mm): 79.1x96.3x60
Cutter: Tear bar
Paper roll diam. max. (mm): 49.5
Character set: 3 resident + downloadable
Character size: 8x16, 7x16, 12x20
Characters per line (max.): 48, 24, 12/54, 27, 13/32, 16, 8
Interfaces: RS 232C, RS 232 TTL, USB
Graphics: Variable width and offset/double width and hight
Barcodes: 11 barcodes: normal and rotated 90°
Windows drivers: XP / NT / 2000 / Linux
Zero power mode (sleep mode): Yes
Auto wake-up on received data: Yes
Functional keyboard: Yes
