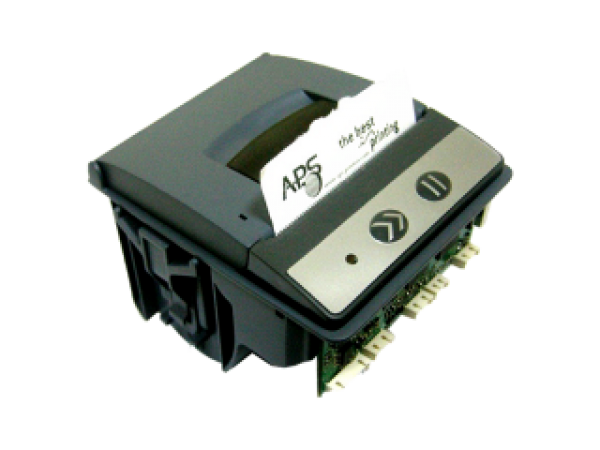

EPM207-HRS

FULLY HOT PLUG PRINTER

EPM207-HRS
EPM207-HRS
Demander un devis

Caractéristiques

  • Powerful graphic modes
  • Integrated keyboard with paper feed, ON-OFF buttons and LED
  • Patented Opening System
  • Powerful text printing modes
  • Printer setup parameters can be saved in a flash
  • Sleep mode
  • Full control over printing quality/speed (up to 95mm/s)
  • Easy firmware upgrades
  • Single power supply
  • Software programmable consumption
  • Fully hot plug printer
  • 2 Communication ports (Serial and USB 2.0)

Applications

  • Cash registers
  • Hand held terminals
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals
  • Weighing scales

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
95
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
5 to 8.5 V
Weight (g)
90
Life/reliability
100km/ 100M pulses
Operating temperature (°C)
-5 to +50
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
81.6x106.2x69
Cutter
Tear bar
Paper roll diam. max. (mm)
60
Character set
3 resident + downloadable
Character size
8x16, 7x16, 12x20
Characters per line (max.)
64 (standard test), 32 (double width), 16 (quadruple width)
Interfaces
RS 232, RS 232 TTL, USB
Graphics
Variable width and offset/double width and hight
Barcodes
10 barcodes: normal and rotated 90°
Windows drivers
Windows
Label/Black mark detection
Yes
Zero power mode (sleep mode)
Yes
Auto wake-up on received data
Yes
Functional keyboard
Yes
