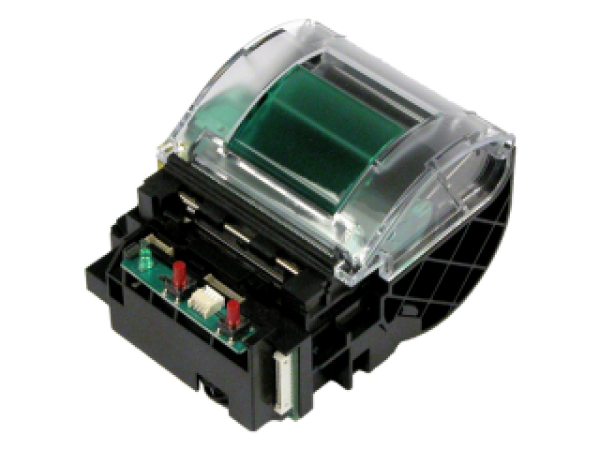

EPM205-MRS

ZERO CURRENT SLEEP MODE

EPM205-MRS
EPM205-MRS
Demander un devis

Caractéristiques

  • Clip-on control board for EPM 200 Series
  • Plug and play capability greatly reduces time-to-market
  • Prints text, graphics and barcodes
  • Zero current sleep mode
  • Panel mount version
  • Label detection
  • Full native and standard Windows drivers

Applications

  • Automotive
  • Cash registers
  • Data terminal devices
  • EFT POS
  • Hand held terminals
  • ID automation
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
50
Voltage range (Logic | Head)
4.5 to 8.5 V
Weight (g)
130
Life/reliability
50km/ 100M pulses
Operating temperature (°C)
0 to +50
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
79.1x96.3x60
Cutter
Tear bar
Paper roll diam. max. (mm)
49.5
Expanded Flash memory
No
Expanded RAM memory
No
PCMCIA slots
No
Character set
3 resident + downloadable
Character size
8x16, 7x16, 12x20
Characters per line (max.)
48, 24, 12/54, 27, 13/32, 16, 8
Interfaces
RS232C, Centronics
Graphics
5 modes
Barcodes
UPCA-E, EAN 13-8, Code 39, ITF 2/5, Codabar, Code 128 A-B-C
Windows drivers
95 / 98 / ME / XP / NT / 2000
Label/Black mark detection
Yes
Zero power mode (sleep mode)
Yes
Auto wake-up on received data
Yes
Functional keyboard
Yes
