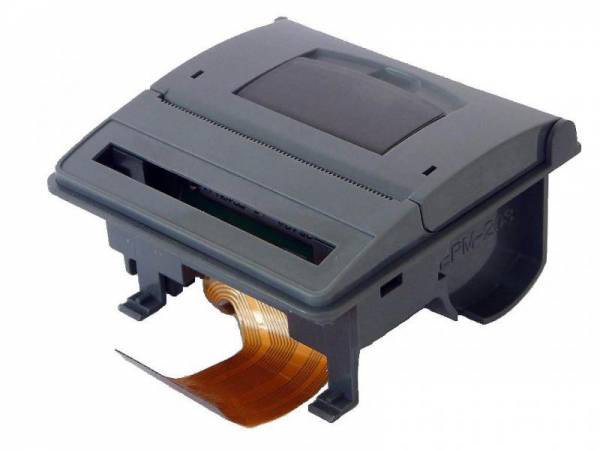

EPM203-5-LV

EASY LOADING PAPER

Caractéristiques

Patented easy loading and easy door opening system
Ultra compact design
Printing speed 75 mm/s
High resolution printing (8 dots/mm)
Life of 100 million pulses, 100km
Low consumption
Low noise due to its technology (thermal)

Applications

Automotive
Data terminal devices
EFT POS
Hand held terminals
Medical equipment
Portable printers and terminals

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58
Max. paper thickness (um): 80
Paper loading: Easy Loading
Printing speed (mm/s): 75
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Opto sensor

Voltage range (Logic | Head): 2.7-5.5 V | 2.7-9.5 V
Dot resistance (Ohm): 116 ± 3%
Energy per dot (mJ): 0.18
Stepper motor (Ohm): Bipolar (12)
Weight (g): 67
Life/reliability: 100km/ 100M pulses
Operating temperature (°C): -5 to 50 non cond.
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 76.8x77.4x43.5
Cutter: Tear bar
