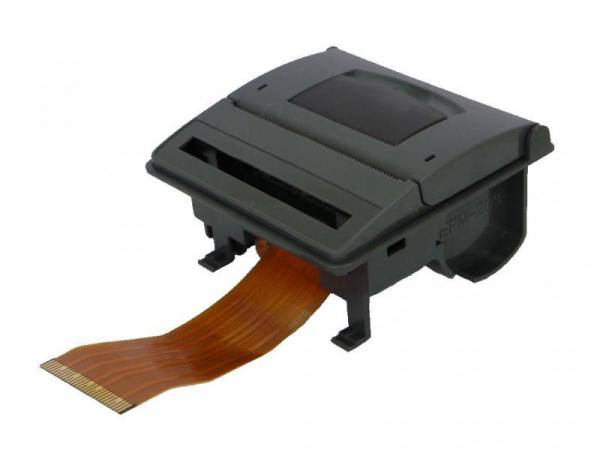

EPM203-8-HS

EASY LOADING PAPER

EPM203-8-HS
EPM203-8-HS
Demander un devis

Caractéristiques

  • Easy loading paper
  • 2 inch paper width
  • Plug and play capability greatly reduces time-to-market
  • Optional control board RS232 and Centronics integrated interface
  • Very compact size
  • Full native and standard Windows drivers

Applications

  • Automotive
  • Data terminal devices
  • EFT POS
  • Hand held terminals
  • ID automation
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
95
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
2.7-5.5 V | 4.5-9.5 V
Dot resistance (Ohm)
176 ± 3%
Energy per dot (mJ)
0.18
Stepper motor (Ohm)
Bipolar (12)
Weight (g)
67
Life/reliability
100km/ 100M pulses
Operating temperature (°C)
-5 to 50
Operating humidity (%)
20 to 90 non cond.
Dimensions (WxDxH mm)
76.8x77.4x43.5
Cutter
Tear bar
Paper roll diam. max. (mm)
32
