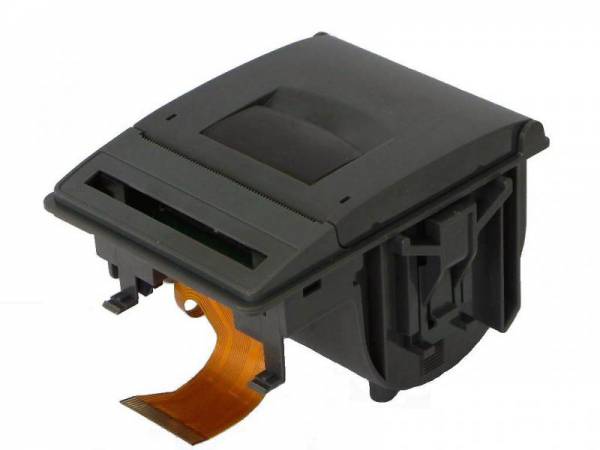

EPM207-5-HS

COMPACT BUCKET PRINTER

EPM207-5-HS
EPM207-5-HS
Demander un devis

Caractéristiques

  • All printer signals are gathered on a single FPC
  • Door open and end of paper sensors
  • Features a tear bar for paper cutting
  • 90 mm/s printing speed
  • Ultra compact design
  • Patented easy loading and easy door opening system

Applications

  • Automotive
  • Data terminal devices
  • EFT POS
  • Hand held terminals
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
95
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
2.7-5.5V / 4.5-9.5 V
Dot resistance (Ohm)
176 ± 3%
Energy per dot (mJ)
0.25
Stepper motor (Ohm)
Bipolar (12)
Weight (g)
95
Life/reliability
100km/ 100M pulses
Operating temperature (°C)
-5 to +50
Operating humidity (%)
10 to 90 non cond.
Dimensions (WxDxH mm)
79.1x96.3x60
Cutter
Tear bar
Paper roll diam. max. (mm)
60
