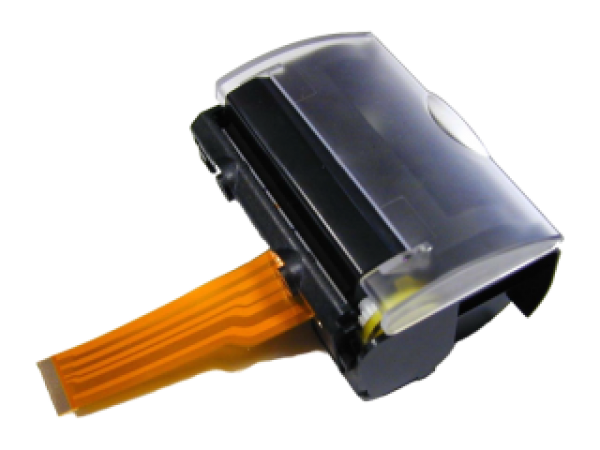

EPM211-HS

INTEGRATED PAPER BUCKET

EPM211-HS
EPM211-HS
Demander un devis

Caractéristiques

  • Ultra light
  • Integrated tear-bar
  • Patented opening system
  • Plug and play capability greatly reduces time-to-market
  • Easy loading paper
  • Integrated paper bucket
  • 2 inches paper width

Applications

  • Automotive
  • EFT POS
  • Hand held terminals
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals
  • Taxi meters

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
110
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
3-5.25 V | 5.5-9.5 V
Dot resistance (Ohm)
165±10%
Energy per dot (mJ)
0.18
Stepper motor (Ohm)
Bipolar (19)
Weight (g)
95
Life/reliability
100km/ 200M pulses
Operating temperature (°C)
-5 to +50
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
71.6x50x37
Cutter
Tear bar
Paper roll diam. max. (mm)
28
