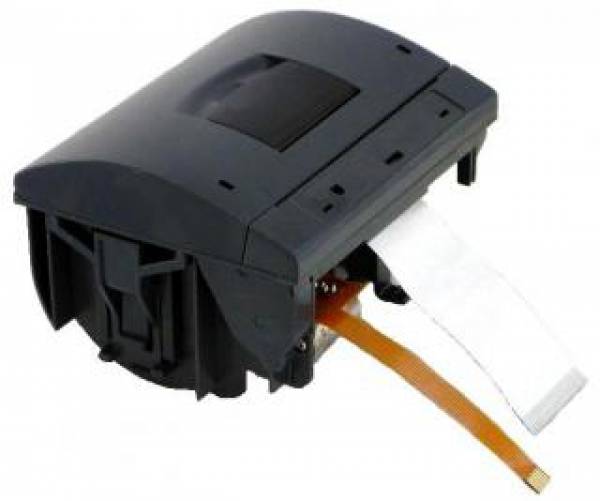

EPM307-HS

ULTRA COMPACT DESIGN

Caractéristiques

Low consumption
Door open and end of paper sensor
Features a tear bar for paper cutting
105 mm/s printing speed
Ultra compact design
Straight paper path
60mm paper roll diameter
Patented easy loading and easy door opening system

Applications

Automotive
Cash registers
Data terminal devices
Hand held terminals
ID automation
Measuring instruments and analysers
Medical equipment
Portable printers and terminals

Caractéristiques techniques

Printing method: Thermal
Number of dots: 576
Resolution (dots/mm): 8
Printing width (mm): 72
Paper width (mm): 80
Max. paper thickness (um): 80
Paper loading: Easy Loading
Printing speed (mm/s): 105
Paper detection: Opto sensor
Temperature detection: Thermistor

Head-up or Cover-open detection: Opto sensor
Voltage range (Logic | Head): 2.7-5.5 V / 4.5-9.5 V
Dot resistance (Ohm): 176 ± 3%
Energy per dot (mJ): 0.18
Stepper motor (Ohm): Bipolar (12)
Weight (g): 100
Life/reliability: 100km / 100M pulses
Operating temperature (°C): -5 to 50 non cond.
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 104,2x82.2x66,3
