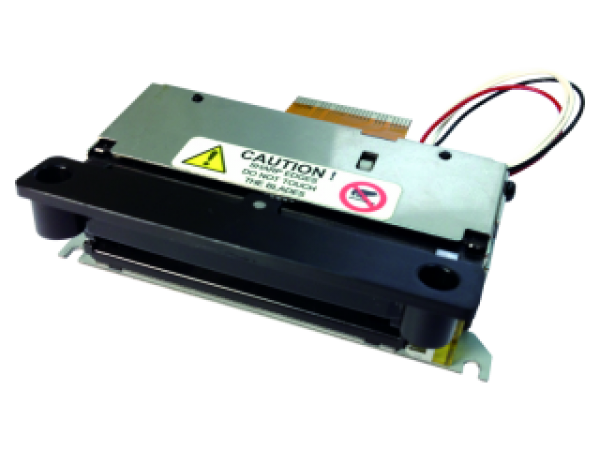

FM205-ELC

ULTRA COMPACT DESIGN

Caractéristiques

Up to 120 mm/sec printing speed with current control
Integrated easy loading cutter (guillotine type) with cutting frequency of 75 cuts/min
Ultra compact design
Patented easy loading and easy door opening system
Large operating range for dots: 4.5 V to 8.5 V
Starting operating voltage as low as 3.0V for logic and 4.5V for the dots

Applications

Automotive
Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Ticketing

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58
Max. paper thickness (um): 70
Paper loading: Easy Loading
Printing speed (mm/s): 120
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Opto sensor

Voltage range (Logic | Head): 3.0-5.5 V | 4.5-9.5 V | Cutter 5 V
Dot resistance (Ohm): 176 ± 3%
Energy per dot (mJ): 0.25
Stepper motor (Ohm): Bipolar (10)
Weight (g): 110
Life/reliability: 100km / 100M pulses
Operating temperature (°C): -5 to +50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 83.4x51.7x23.2
Cutter: > 1 M cuts
