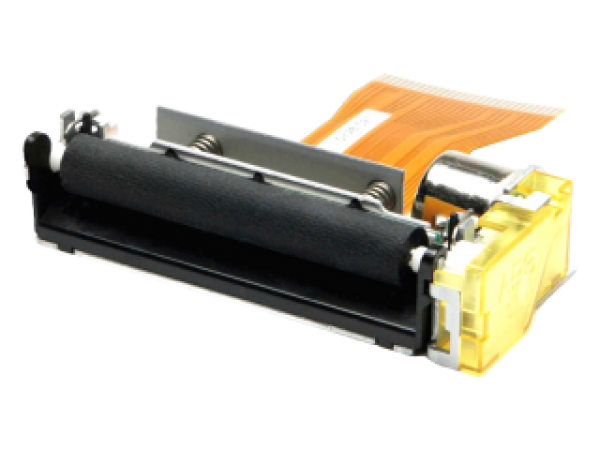

FM212

ULTRA COMPACT DESIGN

Caractéristiques

Patented easy loading and easy door opening system
Ultra compact design
Ultra light
Low consumption
Print speed up to 170 mm/s
Full electrostatic protection
Large operating voltage range 9 to 16 Volts

Applications

Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Medical equipment

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58 +0/-1
Max. paper thickness (um): 70
Paper loading: Easy Loading
Printing speed (mm/s): 170
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Opto sensor

Voltage range (Logic | Head): 3.0-5.5 / 9-16
Dot resistance (Ohm): 300± 3%
Energy per dot (mJ): 0.16
Stepper motor (Ohm): Bipolar (19)
Weight (g): 40
Life/reliability: 100km / 100M pulses
Operating temperature (°C): -10 to 50
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 69.3x32.7x15.3
Cutter: Optional
