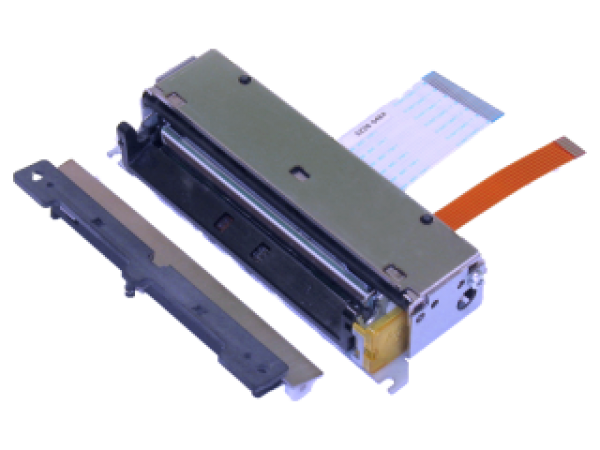

FM305-ELC

LOW CONSUMPTION, ULTRA LIGHT PRINTER

Caractéristiques

Guillotine cutter integrated with life of at least 1 million cuts
Max voltage 9.5 Volts
Patented easy loading and easy door opening system
Low consumption
Printing speed 105 mm/s, 120 cuts/ min
Light but reliable construction
Easy loading cutter integrated
Ultra compact design
Full electrostatic protection

Applications

Automotive
Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
ID automation
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Ticketing

Caractéristiques techniques

Printing method: Thermal
Number of dots: 576
Resolution (dots/mm): 8
Printing width (mm): 72
Paper width (mm): 80 +0/-1
Max. paper thickness (um): 70
Paper loading: Easy Loading
Printing speed (mm/s): 105
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Opto sensor

Voltage range (Logic | Head): 3.0-5.5 V | 4.5-9.5 V | Cutter 5 V
Dot resistance (Ohm): 176 ±4%
Energy per dot (mJ): 0.25
Stepper motor (Ohm): Bipolar (12)
Weight (g): 135
Life/reliability: 100km / 100M pulses
Operating temperature (°C): -5 to +50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 109.5x51.5x23.2
Cutter: > 1 M cuts
