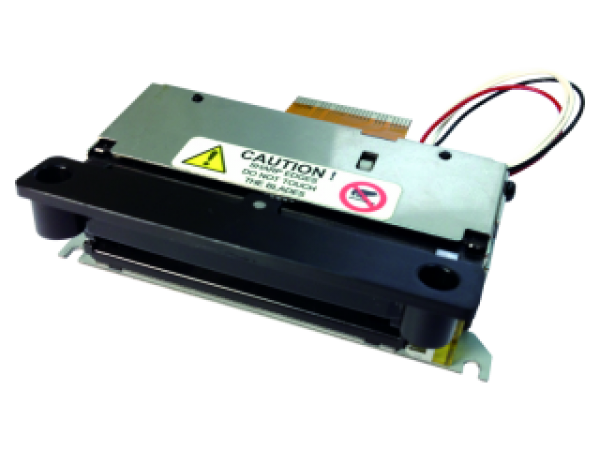

FM212-ELC
ULTRA COMPACT DESIGN
Caractéristiques
- Low consumption
- Life of 100M pulses, 100km and > 1M cuts
- Up to 180 cuts/min
- Full electrostatic protection
- Up to 170mm/s printing speed
- Ultra compact design
- Integrated easy loading cutter (guillotine type)
- Patented easy loading and easy door opening system
Applications
- Calculators
- Data terminal devices
- EFT POS
- Fiscal printers
- Hand held terminals
- Measuring instruments and analysers
- Medical equipment
Caractéristiques techniques
- Printing method
- Thermal
- Number of dots
- 384
- Resolution (dots/mm)
- 8
- Printing width (mm)
- 48
- Paper width (mm)
- 58 +0/-1
- Max. paper thickness (um)
- 70
- Paper loading
- Easy Loading
- Printing speed (mm/s)
- 170
- Paper detection
- Opto sensor
- Temperature detection
- Thermistor
- Head-up or Cover-open detection
- Opto sensor
- Voltage range (Logic | Head)
- 3.0-5.5 / 9-16
- Dot resistance (Ohm)
- 300± 3%
- Energy per dot (mJ)
- 0.16
- Stepper motor (Ohm)
- Bipolar (19)
- Weight (g)
- 110
- Life/reliability
- 100km / 100M pulsess / >1M cuts
- Operating temperature (°C)
- -10 to 50
- Operating humidity (%)
- 10 to 90 non cond.
- Dimensions (WxDxH mm)
- 82 x 51,5 x 23,2
- Cutter
- Guillotine
