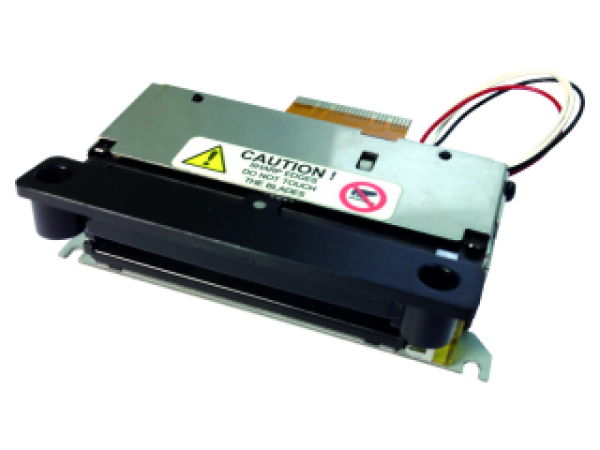

FM224-ELEC

ULTRA COMPACT DESIGN

Caractéristiques

Low consumption
Life of 100M pulses, 100km and >1 million cuts
Up to 180 cuts/min
Full electrostatic protection
Up to 170 mm/s printing speed
Ultra compact design
Integrated easy loading cutter (guillotine type)
Patented easy loading and easy door opening system

Applications

Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Medical equipment
Ticketing

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58 +0/-1
Max. paper thickness (um): 70
Paper loading: Easy Loading
Printing speed (mm/s): 170
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Opto sensor

Voltage range (Logic | Head): 5 ± 5% V | 18-27 V | Cutter 5 V
Dot resistance (Ohm): 800± 3%
Energy per dot (mJ): 0.13
Stepper motor (Ohm): Bipolar (19)
Weight (g): 110
Life/reliability: 100km / 100M pulses
Operating temperature (°C): -10 to +50
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 84x52x23
Cutter: > 1 M cuts
