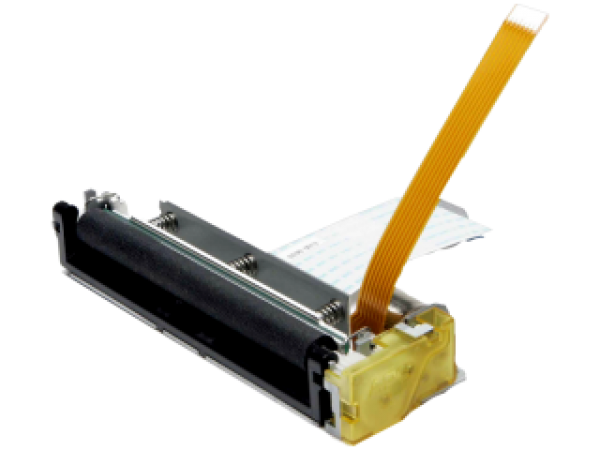

FM305-HS

LOW CONSUMPTION, ULTRA LIGHT PRINTER

FM305-HS
FM305-HS
Demander un devis

Caractéristiques

  • Low consumption
  • Patented easy loading and easy door opening system
  • Ultra compact design
  • Ultra light (57 g)
  • Full electrostatic protection
  • Easy loading cutter available
  • Double opto available

Applications

  • Automotive
  • Calculators
  • Data terminal devices
  • EFT POS
  • Fiscal printers
  • Hand held terminals
  • ID automation
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals
  • Taxi meters
  • Ticketing

Caractéristiques techniques

Printing method
Thermal
Number of dots
576
Resolution (dots/mm)
8
Printing width (mm)
72
Paper width (mm)
80 +0/-1
Max. paper thickness (um)
80
Paper loading
Easy Loading
Printing speed (mm/s)
105
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
3.0-5.5 V | 4.5-9.5 V
Dot resistance (Ohm)
176 ±4%
Energy per dot (mJ)
0.18
Stepper motor (Ohm)
Bipolar (12)
Weight (g)
47
Life/reliability
100km / 100M pulses / > 1M cuts
Operating temperature (°C)
-10 to +50
Operating humidity (%)
10 to 90 non cond.
Dimensions (WxDxH mm)
95x33x15
Cutter
Optional
