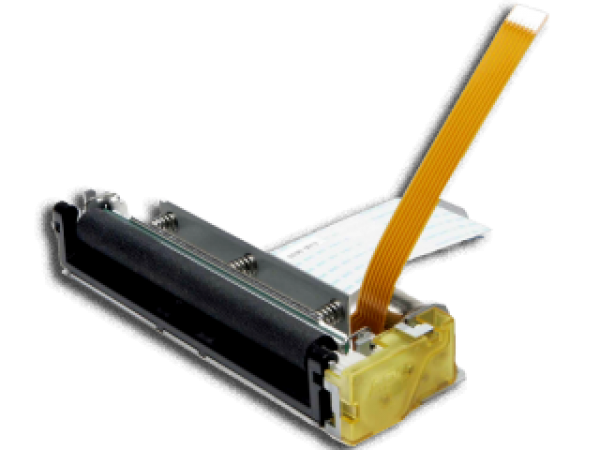

FM324

ULTRA LIGHT AND COMPACT DESIGN

Caractéristiques

Ultra light and compact design
Printing speed up to 200mm/s
TPH life of 100 km of paper path and 100M pulses
High resolution (8 dots/mm)

Applications

Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
ID automation
Measuring instruments and analysers
Medical equipment
Ticketing

Caractéristiques techniques

Printing method: Thermal
Number of dots: 576
Resolution (dots/mm): 8
Printing width (mm): 72
Paper width (mm): 80 +0/-1
Max. paper thickness (um): 63 ± 5
Paper loading: Easy Loading
Printing speed (mm/s): 200
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Opto sensor

Voltage range (Logic | Head): 3.0-5.25 V | 24.0-25.0 V
Dot resistance (Ohm): 800 ±3%
Energy per dot (mJ): 0.20
Stepper motor (Ohm): Bipolar (12)
Weight (g): 57
Life/reliability: 100 km/100M Pulses
Operating temperature (°C): -10 to +50
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 95.4x32.7x15.3
Cutter: Optional
