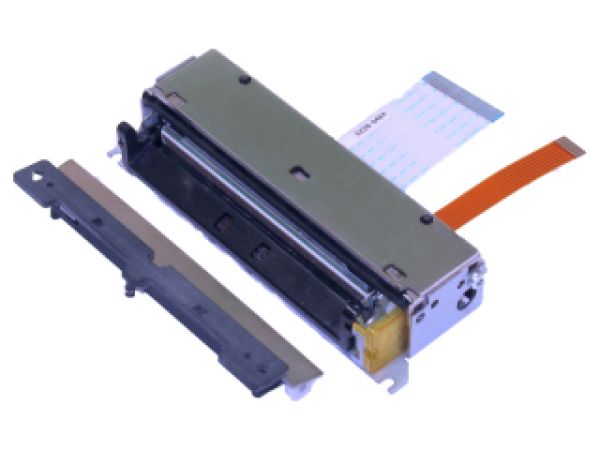

FM324-ELC

ULTRA LIGHT AND COMPACT DESIGN

Caractéristiques

Patented easy loading and easy door opening system with the easy loading cutter integrated
Ultra light and compact design
TPH life of 100 km of paper path and 100M pulses
Printing speed up to 200mm/s
High resolution (8 dots/mm)
Cutter performing 120 cuts/min and featuring more than 1 million cuts life

Applications

Calculators
Data terminal devices
EFT POS
Fiscal printers
Hand held terminals
ID automation
Measuring instruments and analysers
Medical equipment
Ticketing

Caractéristiques techniques

Printing method: Thermal
Number of dots: 576
Resolution (dots/mm): 8
Printing width (mm): 72
Paper width (mm): 80 +0/-1
Max. paper thickness (um): 63 ± 5
Paper loading: Easy Loading
Printing speed (mm/s): 200
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Opto sensor

Voltage range (Logic | Head): 3.0-5.25 V | 24-25 V
Dot resistance (Ohm): 800 ±3%
Energy per dot (mJ): 0.20
Stepper motor (Ohm): Bipolar (12)
Weight (g): approx. 150
Life/reliability: 100 km/100M Pulses
Operating temperature (°C): -10 to +50
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 110x55x25
Cutter: > 1 M cuts
