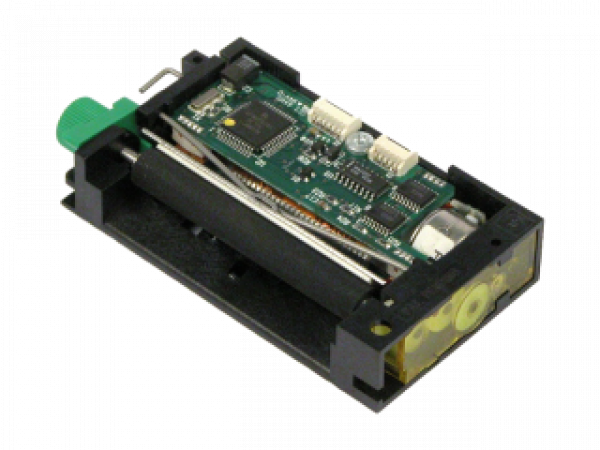

CP205-HRS

COMPACT THERMAL PRINTER

Caractéristiques

Fully hot plug printers
Software programmable consumption
Full control over printing quality/speed
External pluggable switches and LED for easy integration
RS232 Communication ports
Powerful Text and Graphic Printing Modes
Cutter driving
Supports reflective and transmissive optocouplers
Printing parameters can be saved in flash
Supports easy single-sheet insertion /ejection

Applications

Automotive
EFT POS
ID automation
Kiosks
Medical equipment
Vending machines

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58 (60 bottom loading)
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 90
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch
Voltage range (Logic | Head): single 5 to 8.5 V
Weight (g): 50
Life/reliability: 100 km/100M Pulses
Operating temperature (°C): -10 to +60

Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 82x47x16
Cutter: Optional
Character set: 3 resident + downloadable
Character size: 8x16, 7x16, 12x20
Characters per line (max.): 48, 24, 12/54, 27, 13/32, 16, 8
Interfaces: RS232C
Graphics: Powerful graphic modes
Barcodes: 10 barcodes
Windows drivers: Yes
Label/Black mark detection: Yes
Zero power mode (sleep mode): No
Auto wake-up on received data: Yes
Functional keyboard: Yes
