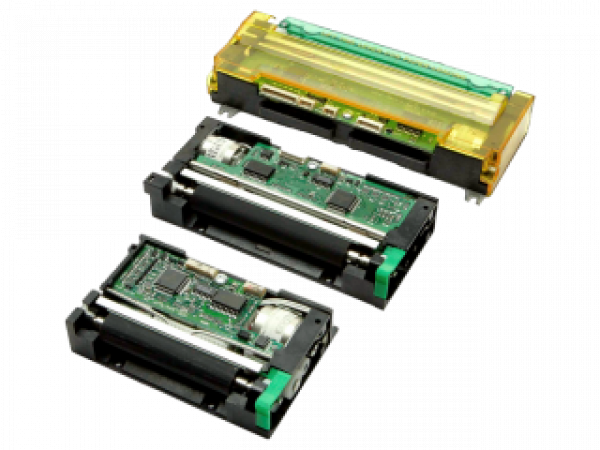

CP290HRS

COMPACT AND LIGHT PRINTER

Caractéristiques

No power-up sequence required
Hole / Mark detection
Windows and Linux drivers
Software programmable energy consumption
Downloadable character set
Near End of Paper and keyboard control extension
Customizable I2C, I/0 extension boards, handles
Print text graphics and barcode
Printer speed up to 120 mm/s
2, 3 and 4 inch paper width
Compact and light

Applications

Automotive
Cash registers
Data terminal devices
EFT POS
Fiscal printers
Gaming and lottery
ID automation
Medical equipment
Ticketing
Vending machines
Voting

Caractéristiques techniques

Printing method: Thermal
Number of dots: 432
Resolution (dots/mm): 8
Printing width (mm): 54
Paper width (mm): 60 or 66
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 120
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch
Voltage range (Logic | Head): 18 - 27 V
Weight (g): 70
Life/reliability: 100 km/100M Pulses
Operating temperature (°C): -20 to +70

Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 91x55x20
Cutter: Optional
Character set: 3 resident + downloadable
Character size: 8x16, 7x16, 12x20
Characters per line (max.): 48, 24, 12/54, 27, 13/32, 16, 8
Interfaces: RS232, USB
Graphics: 3 modes
Barcodes: UPC A-E, EAN 13-8, Code 39, ITF 2/5, Codabar, Code 128 A-B- C
Windows drivers: 95 / 98 / ME / XP / NT / 2000 / Linux
Label/Black mark detection: Yes
Zero power mode (sleep mode): No
Auto wake-up on received data: No
Functional keyboard: Yes
