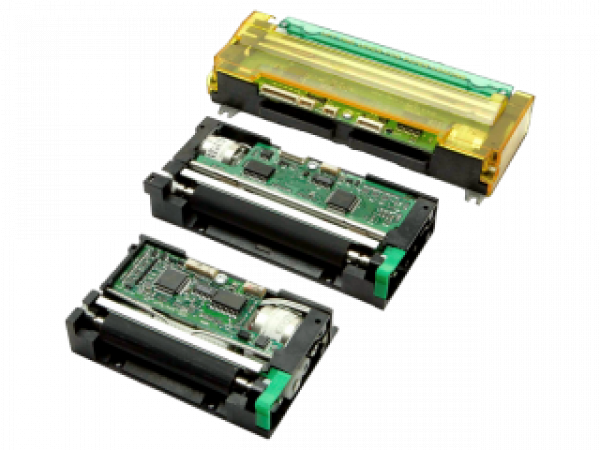

CP424HRS

COMPACT AND LIGHT PRINTER

Caractéristiques

2, 3 and 4 inch paper width
Printer speed up to 120 mm/s
Compact and light
Prints text graphics and barcode
Downloadable character set
Customizable I2C, I/0 extension boards, handles
Near End of Paper and keyboard control extension
Software programmable energy consumption
Windows Linux drivers
Hole / Mark detection
No power-up sequence required

Applications

Automotive
Cash registers
Data terminal devices
EFT POS
Fiscal printers
Gaming and lottery
ID automation
Medical equipment
Ticketing
Vending machines
Voting

Caractéristiques techniques

Printing method: Thermal
Number of dots: 864
Resolution (dots/mm): 8
Printing width (mm): 104
Paper width (mm): 114
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 120
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch
Voltage range (Logic | Head): 18 - 27 V
Weight (g): 150
Life/reliability: 50 km/100M Pulses
Operating temperature (°C): -20 to +70

Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 156x55x27
Cutter: Optional
Character set: 3 resident + downloadable
Character size: 8x16, 7x16, 12x20
Characters per line (max.): 96, 48, 24/108, 54, 27/66, 33, 16
Interfaces: RS232, USB
Graphics: 3 modes
Barcodes: UPC A-E, EAN 13-8, Code 39, ITF 2/5, Codabar, Code
Windows drivers: 95 / 98 / ME / XP / NT / 2000 / Linux
Label/Black mark detection: Yes
Zero power mode (sleep mode): No
Auto wake-up on received data: No
Functional keyboard: Yes
