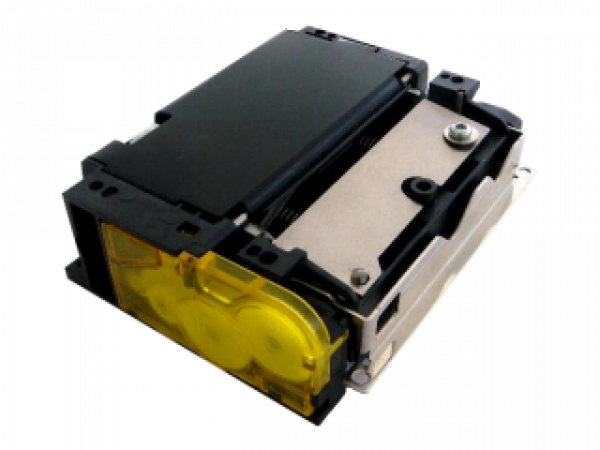

HSP2128

FULL EASY LOADING PRINTER AND CUTTER

Caractéristiques

Full & partial cuts
Full easy loading printer and cutter
Compact design (95 x 74 x 30 mm)
12V operation voltage
Life: 200 km printing and 2 M cuts
Printing speed 250 mm/s (!)
Cuts up to 220 um
60 to 62.5 paper width

Applications

ATM machines
Data terminal devices
Gaming and lottery
Gas pumps
Kiosks
Parking meters
Ticketing
Vending machines

Caractéristiques techniques

Printing method: Thermal
Number of dots: 448
Resolution (dots/mm): 8
Printing width (mm): 56 +/- 0.2 mm
Paper width (mm): 60 to 62.5
Max. paper thickness (um): 220
Paper loading: Easy loading
Printing speed (mm/s): 250
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Mechanical switch

Voltage range (Logic | Head): 5 or 3.3 V ± 5% / 12 V typical
Dot resistance (Ohm): 300 ± 3 %
Energy per dot (mJ): 0.16
Stepper motor (Ohm): 13
Weight (g): 250
Life/reliability: 200km / 100M pulses/ 2 M cuts
Operating temperature (°C): -20 to +70
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 95x74x30
Cutter: 2M cuts
