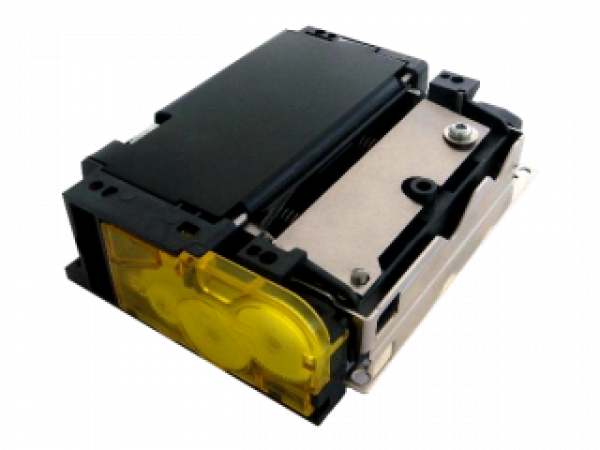

HSP2208

FULL EASY LOADING PRINTER AND CUTTER

Caractéristiques

60 to 62.5 paper width
2 million cuts life
Cuts up to 220 µm
Prints at 250 mm/sec (10 ips)
Available with 12 V operating voltage (HSP2128)
Near straight paper path for thick paper printing
ESC/POSTM compatible
USB 2.0 and high-speed RS232
Ability to add external presenter and sensor control
Full easy loading printer and cutter
200 km printing life

Applications

ATM machines
Data terminal devices
Gaming and lottery
Gas pumps
Kiosks
Parking meters
Ticketing
Vending machines

Caractéristiques techniques

Printing method: Thermal
Number of dots: 448
Resolution (dots/mm): 8
Printing width (mm): 56 +/- 0.2 mm
Paper width (mm): 60 to 62.5
Max. paper thickness (um): 220
Paper loading: Easy loading
Printing speed (mm/s): 250
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Mechanical switch

Voltage range (Logic | Head): 5 or 3.3 V ±5% / 24 V ±10%
Dot resistance (Ohm): 650 ± 3%
Energy per dot (mJ): 0.13
Stepper motor (Ohm): 13 ±10%
Weight (g): 250
Life/reliability: 200km/ 150M pulses
Operating temperature (°C): -20 to +70
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 95x74x30
Cutter: 2M cuts
