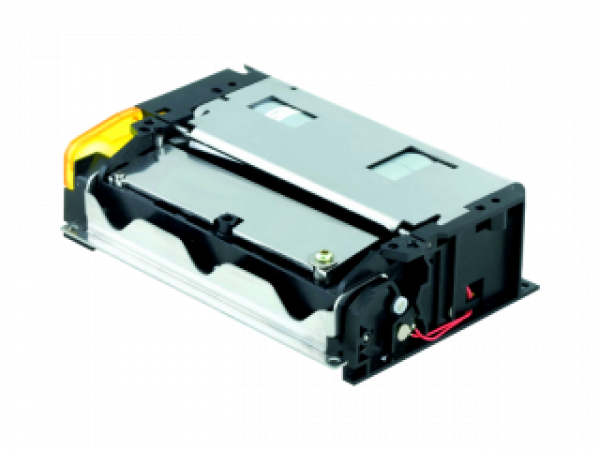

HSP3208

NON-SPARKING DESIGN FOR GAS PUMPS

Caractéristiques

80 or 82.5 mm paper width
Full easy loading printer & cutter
200km printing life
86 mm paper for railway ticketing application (HSP3208-86)
Available 300 dpi resolution HSP3512 version
2 million cuts life (full & partial)
Near straight paper path for thickpaper printing
Ability to add external presenter and sensor control
Available with 12 V operating voltage (HSP3128)
Extended temperature range
Kiosk or Easy loading* versions (same principle as for 2¨; mechanisms)
Non-sparking design for gas pumps

Applications

ATM machines
Gaming and lottery
Gas pumps
ID automation
Kiosks
Parking meters
Ticketing
Vending machines

Caractéristiques techniques

Printing method: Thermal dot line printing
Number of dots: 640
Resolution (dots/mm): 8
Printing width (mm): 80
Paper width (mm): 80 to 82.5 +0/-0.5
Max. paper thickness (um): 220
Paper loading: Easy loading
Printing speed (mm/s): 300
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Mechanical switch
Voltage range (Logic | Head): 5 or 3.3 V | 24 typical, 26.5 V max
Dot resistance (Ohm): 650 ± 3%
Energy per dot (mJ): 0.13

Weight (g): 450
Life/reliability: 200km/ 150M pulses
Operating temperature (°C): -20 to +70
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 125x82.5x35.7
Cutter: 2M cuts
Character set: Two resident, easy upgrades
Character size: 12x24, 9x17 pixels, user fonts - any
Interfaces: Serial, USB 2.0
Graphics: Powerful graphic printing modes
Barcodes: UPC-A, UPC-E, EAN13, CODE39, ITF and CODABAR
Windows drivers: Yes
Label/Black mark detection: Left or Right
Functional keyboard: Yes
