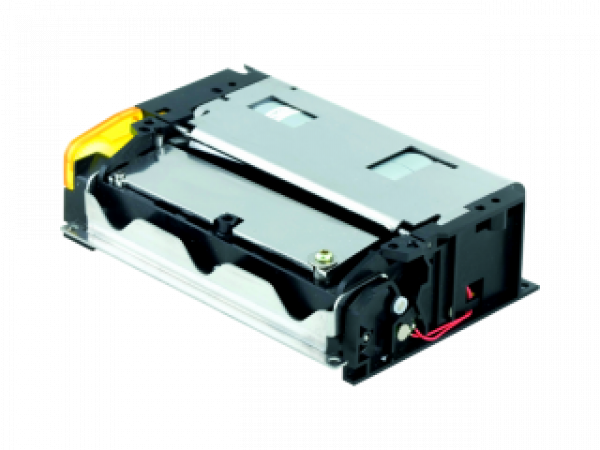

HSP3512

ULTRA COMPACT, HEAVY DUTY PRINTER

Caractéristiques

+50% resolution (12 dots/mm)
Full & partial cuts
Full easy loading printing & cutter
USB 2.0 and high-speed RS232
24V operation
Heavy duty mechanism: 200 km, 2 million cuts (paper thickness: 63 µm and 190µm)
80 or 82.5 mm paper width
Near straight paper path for thick paper printing
Ultra compact design (width is 125 mm, height is 35.7 mm, length is 82.5 mm)
Cuts paper up to 220 µm (10 mils) in less than 550 ms (80 µm in less than 240 ms)
up to 200 mm/s printing speed
Ability to add external presenter and sensor control

Applications

ATM machines
Gaming and lottery
Gas pumps
ID automation
Kiosks
Parking meters
Ticketing
Vending machines

Caractéristiques techniques

Printing method: Thermal
Number of dots: 960
Resolution (dots/mm): 12
Printing width (mm): 80
Paper width (mm): 80 to 82.5
Max. paper thickness (um): 220
Paper loading: Easy loading
Printing speed (mm/s): up to 200 (7.9 ips)
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Mechanical switch

Voltage range (Logic | Head): 5 or 3.3 V | 24 typical, 26.5 V max
Dot resistance (Ohm): 800 ± 3 %
Energy per dot (mJ): 0.13
Stepper motor (Ohm): 7 ± 10%
Weight (g): 450
Life/reliability: 200km/ 150M pulses
Operating temperature (°C): -20 to +70
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 125x82.5x35.7
Cutter: 2M cuts
