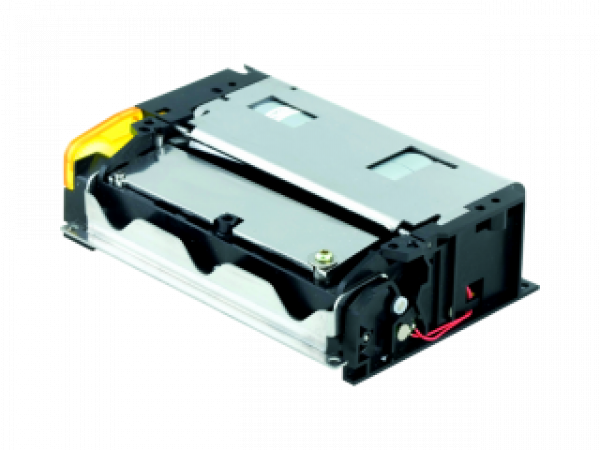

HSP3512-86

EASY LOADING, HEAVY DUTY PRINTER

Caractéristiques

  • 24V operation
  • up to 200 mm/s printing speed
  • +50 % resolution from the standard (12 dots/mm)
  • 86 mm paper width - special edition for railway ticketing industry
  • Black mark & top of form detection for label printing
  •  Cuts paper up to 220 µm (10 mils) in less than 550 ms (80 µm in less than 240 ms)

Applications

  • ATM machines
  • Gaming and lottery
  • Gas pumps
  • ID automation
  • Kiosks
  • Parking meters
  • Ticketing
  • Vending machines

Caractéristiques techniques

Printing method
Thermal
Number of dots
960
Resolution (dots/mm)
12
Printing width (mm)
80
Paper width (mm)
86
Max. paper thickness (um)
220
Paper loading
Full easy loading
Printing speed (mm/s)
up to 200 (7.9 ips)
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Mechanical switch
Voltage range (Logic | Head)
5 or 3.3 V | 24 typical, 26.5 V max
Dot resistance (Ohm)
800 ± 3 %
Energy per dot (mJ)
0.17
Stepper motor (Ohm)
13
Weight (g)
450
Life/reliability
200km/ 100M pulses
Operating temperature (°C)
-20 to +60
Operating humidity (%)
10 to 90 non cond.
Dimensions (WxDxH mm)
125x82.5x35.7
Cutter
2M cuts
Character set
Two resident
Character size
12x24 and 9x17 pixels (User fonts - any width and height)
Interfaces
Serial, USB 2.0
Graphics
Powerful graphic printing modes
Barcodes
UPC-A, UPC-E, EAN13, CODE39, ITF and CODABAR
Windows drivers
Yes / Linux
Label/Black mark detection
Yes
Functional keyboard
Standard A.P.S. keyboard
