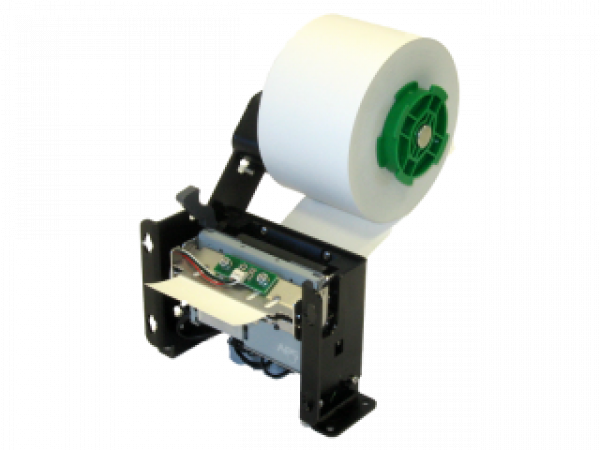

KM290-HRS-V2

VERTICAL AND HORIZONTAL PRINTING MODE

Caractéristiques

Hole/Black mark & Correct paper path exit detection
Near of end, end of paper detection
Programmable energy consumption
Guillotine cutter
2 Communication ports
Three resident fonts + downloadable character set
Integrated switches and LED
Multi position paper roll support
Vertical and horizontal printing
Prints text, graphics and 11 barcodes
2¨ paper width
Compact and light

Applications

ATM machines
Data terminal devices
Gaming and lottery
Gas pumps
ID automation
Kiosks
Parking meters
Ticketing
Vending machines

Caractéristiques techniques

Printing method: Thermal
Number of dots: 432
Resolution (dots/mm): 8
Printing width (mm): 54
Paper width (mm): 60 or 66 ± 0.5
Max. paper thickness (um): max. 107
Paper loading: Automatic
Printing speed (mm/s): 80
Paper detection: Opto sensor
Head-up or Cover-open detection: Opto sensor
Voltage range (Logic | Head): 12 to 27
Weight (g): 800
Life/reliability: 100km/ 100M pulses
Operating temperature (°C): -10 to +60
Operating humidity (%): 20 to 85 non cond.

Dimensions (WxDxH mm): 116x175x111 (default paper holder position)
Cutter: Guillotine
Paper roll diam. max. (mm): 140
Expanded Flash memory: Yes
Character set: 3 resident sets of 224 characters
Character size: 8x16, 12x20, and 7x16
Characters per line (max.): 54
Interfaces: RS232, USB 2.0
Graphics: Yes
Barcodes: 11: Normal and rotated 90° for 1D bar codes, PDF417 2D
Windows drivers: Windows and Linux
Label/Black mark detection: Yes
Zero power mode (sleep mode): No
Auto wake-up on received data: No
Functional keyboard: Yes
