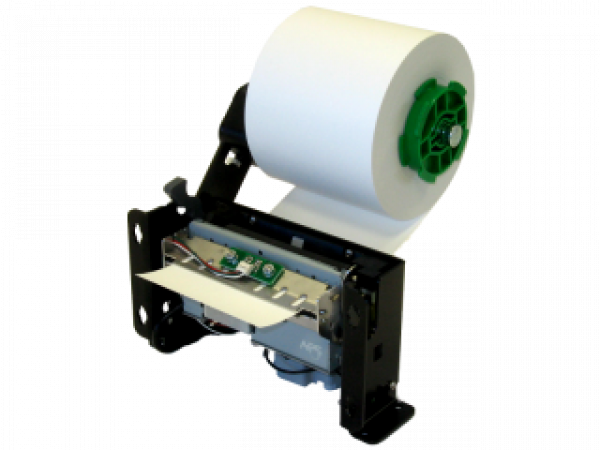

KM324-HRS-V2

COMPACT AND LIGHT PRINTER

KM324-HRS-V2
KM324-HRS-V2
Demander un devis

Caractéristiques

  • Windows and Linux Drivers
  • Multi position (3) Paper Roll support
  • Easy firmware upgrades
  • Integrated cutter
  • Hole/Mark Detection/Correct Paper Path Exit Detection
  • Powerful Text and Graphic Printing Modes
  • Three resident fonts
  • Software programmable energy consumption
  • 2 Communication ports - RS232 and USB 2.0
  • Integrated switches and LED (on-off line status, paper feed)
  • Full control over printing quality/speed
  • Compact and light
  • Near End of Paper, End of Paper, Correct Paper path exit detection sensors
  • Print text, graphics and barcode

Applications

  • ATM machines
  • Data terminal devices
  • Gaming and lottery
  • Gas pumps
  • ID automation
  • Kiosks
  • Parking meters
  • Ticketing
  • Vending machines

Caractéristiques techniques

Printing method
Thermal
Number of dots
576
Resolution (dots/mm)
8
Printing width (mm)
72
Paper width (mm)
80 or 82.5 +0/-1
Max. paper thickness (um)
55-100
Paper loading
Automatic
Printing speed (mm/s)
80
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
From 18V to 27V
Dot resistance (Ohm)
1500
Weight (g)
920 approx. (without paper roll)
Life/reliability
50 km/ 100M pulses
Operating temperature (°C)
-10 to +60
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
159x175x111
Cutter
500 K cuts
Paper roll diam. max. (mm)
140
Character set
3 resident + downloadable
Character size
8x16/ 7x16/ 12x20
Characters per line (max.)
72
Interfaces
RS232, USB 2.0
Graphics
3 modes
Barcodes
UPC A-E, EAN 13-8, Code 39, ITF 2/5, Codabar, Code 128 A-B- C
Windows drivers
Windows & Linux
Label/Black mark detection
Yes
Zero power mode (sleep mode)
No
Auto wake-up on received data
No
Functional keyboard
Yes
