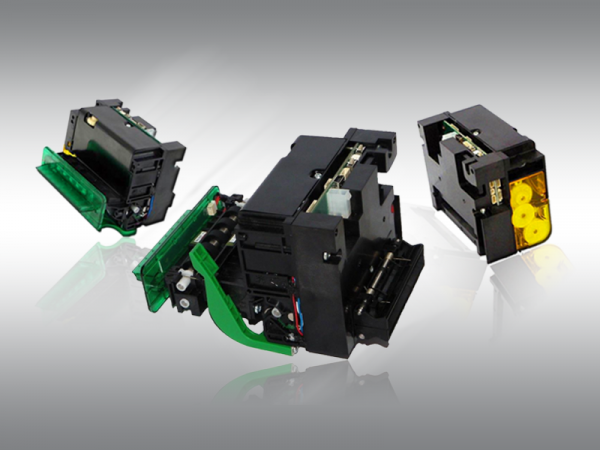

Modular Kiosk Line (MKL 3)

3 INCHES

Caractéristiques

  • The new MKL 3 inches printers have been designed as a compact modular printer kiosk solution at 12V and 24V
  • Modular Kiosk Line is easy to fix and to integrate in your design
  • Can pull large diameter paper roll (up to 10 inches)
  • MKL consists of a basic module - printer mechanism and powerful controller board with integrated keyboard and additional module such as loop presenter/retractor. anti-jam detection, paper tensioner and exit bezel with LED illumination
  • Optional modules like fixation frames and paper holders are also available
  • MKL offers high printing speed; full control over printing quality/speed and much more...
  • Powerful text/ graphic modes and 2D barcodes
  • Easy firmware and font upgrades
  • Hardware QR barcode support
  • RS232C or USB communication interface
  • MKL provides extremely reliable printing, working in a broad spectrum of kiosk applications.

Applications

  • ATM machines
  • Data terminal devices
  • Gaming and lottery
  • Gas pumps
  • ID automation
  • Kiosks
  • Label printers
  • Parking meters
  • Ticketing
  • Vending machines

Caractéristiques techniques

Printing method
Thermal
Number of dots
640
Resolution (dots/mm)
8
Printing width (mm)
80
Paper width (mm)
80 to 82.5
Max. paper thickness (um)
220
Paper loading
Automatic
Printing speed (mm/s)
300
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Mechanical switch
Voltage range (Logic | Head)
12 or 24 v versions
Dot resistance (Ohm)
650±3% (24V) / 300±3% (12V)
Weight (g)
from 500 to 1000 (depending on the configuration)
Life/reliability
200 km/100M pulses/2 M cuts
Operating temperature (°C)
-25 to +70 °C
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
depending on the configuration
Cutter
Guillotine
Character set
3 resident + downloadable
Character size
8x16/ 7x16/ 12x20
Interfaces
RS232C, USB
Barcodes
UPC A-E, EAN 13-8, Code 39, ITF 2/5, Codabar, Code 128 A-B- C, PDF 417, QR code
Windows drivers
Windows, Linux
Label/Black mark detection
Left or right
Zero power mode (sleep mode)
Yes
Auto wake-up on received data
Yes
Functional keyboard
Yes
