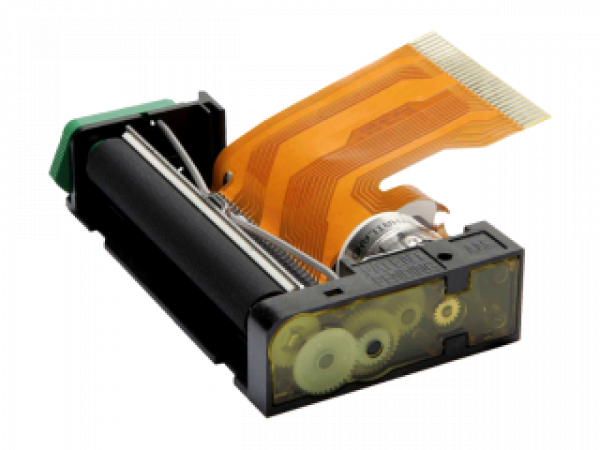

MP205-LV

HIGH RELIABILITY IN AN EXTREMELY SMALL SIZE

Caractéristiques

Other FPCs available
Low cost
Double opto available
Prints high quality characters at speed up to 70 mm/s
High reliability in an extremely small size
Ergonomic design (centered paper path allows uniform and aesthetic housing design)
No loose wiring (a single flex-cable houses all wiring)
2 inches paper width
Ultra compact design

Applications

Automotive
Cash registers
Data terminal devices
Digital tachometers
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Taxi meters
Weighing scales

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 70
Paper detection: Opto sensor
Temperature detection: Thermistor

Voltage range (Logic | Head): 2.7-5.5 V | 3.0-9.5 V
Dot resistance (Ohm): 123 ± 3%
Energy per dot (mJ): 0.15
Stepper motor (Ohm): Bipolar (12)
Weight (g): 40
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): -5 to +50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 68.5x41x15
