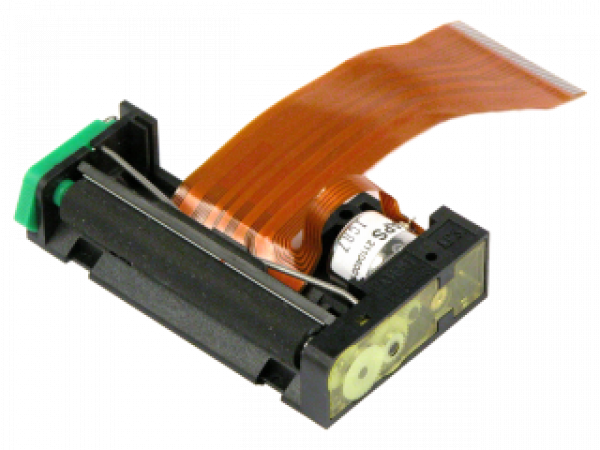

MP208-LV

HIGH RELIABILITY IN AN EXTREMELY SMALL SIZE

MP208-LV
MP208-LV
Demander un devis

Caractéristiques

  • Other FPCs available
  • Longer FPC
  • Double opto available
  • Low cost
  • Prints high quality characters at speed up to 70 mm/s
  • High reliability in an extremely small size
  • Ergonomic design (centered paper path allows uniform and aesthetic housing design)
  • No loose wiring (a single flex-cable houses all wiring)
  • Ultra compact design
  • 2 inches paper width

Applications

  • Automotive
  • Cash registers
  • Data terminal devices
  • Digital tachometers
  • EFT POS
  • Fiscal printers
  • Hand held terminals
  • Measuring instruments and analysers
  • Medical equipment
  • Portable printers and terminals
  • Taxi meters
  • Weighing scales

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Automatic
Printing speed (mm/s)
70
Paper detection
Opto sensor
Temperature detection
Thermistor
Voltage range (Logic | Head)
2.7-5.5 V | 3.0-9.5 V
Dot resistance (Ohm)
123 ± 10%
Energy per dot (mJ)
0.12
Stepper motor (Ohm)
Bipolar (12)
Weight (g)
40
Life/reliability
50km/ 100M pulses
Operating temperature (°C)
-5 to +50
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
68.5x41x15
