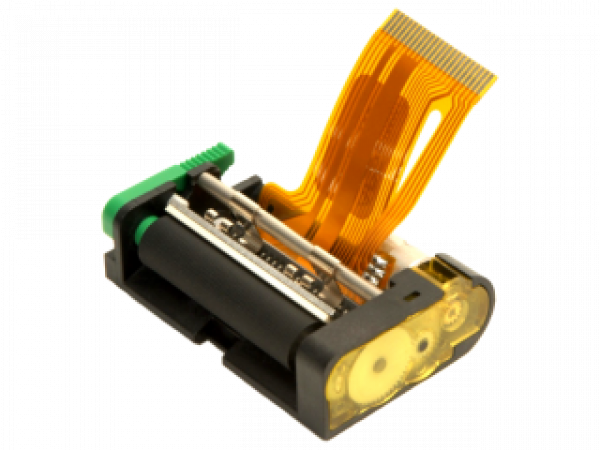

MP105

ULTRA COMPACT PRINTER

Caractéristiques

1 inch paper width
Ultra compact design (height only 13mm and weight only 30g)
No loose wiring (single flex-cable houses all wiring)
Ergonomic design (centered paper path allows uniform and aesthetic housing design)
High reliability in an extremely small size
Foot print compatible with shuttle type
Prints high quality characters at speed up to 80mm/s

Applications

Calculators
Data terminal devices
EFT POS
Hand held terminals
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Taxi meters

Caractéristiques techniques

Printing method: Thermal
Number of dots: 192
Resolution (dots/mm): 8
Printing width (mm): 24
Paper width (mm): 38
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 80
Paper detection: Opto sensor
Temperature detection: Thermistor

Voltage range (Logic | Head): 5 ± 5% V | 4.2-8.5 V
Dot resistance (Ohm): 142 ± 4%
Energy per dot (mJ): 0.31
Stepper motor (Ohm): Bipolar (20)
Weight (g): 30
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): -5 to +50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 32x48x13.8
