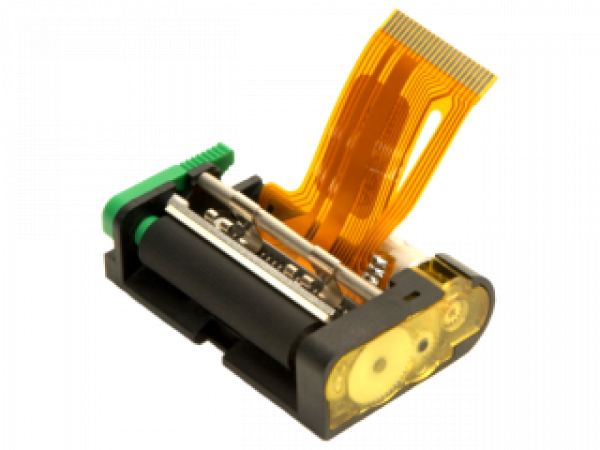

MP106

ULTRA COMPACT PRINTER

Caractéristiques

Low noise technology
High speed (up to 80 mm/s)
Low consumption
Ergonomic design (centered paper path)
High reliability in an extremely small size
Single flex-cable
1 inch (38mm) paper width / 32 mm printing width
Ultra compact design

Applications

Calculators
Data terminal devices
EFT POS
Hand held terminals
Measuring instruments and analysers
Medical equipment
Portable printers and terminals
Taxi meters

Caractéristiques techniques

Printing method: Thermal
Number of dots: 256
Resolution (dots/mm): 8
Printing width (mm): 32
Paper width (mm): 38
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 80
Paper detection: Opto sensor
Temperature detection: Thermistor

Voltage range (Logic | Head): 5 ± 5% V | 4.2-8.5 V
Dot resistance (Ohm): 140 ± 3%
Energy per dot (mJ): 0.31
Stepper motor (Ohm): Bipolar (20)
Weight (g): 30
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): -5 to +50
Operating humidity (%): 20 to 85 non cond.
Dimensions (WxDxH mm): 32x48x13.8
