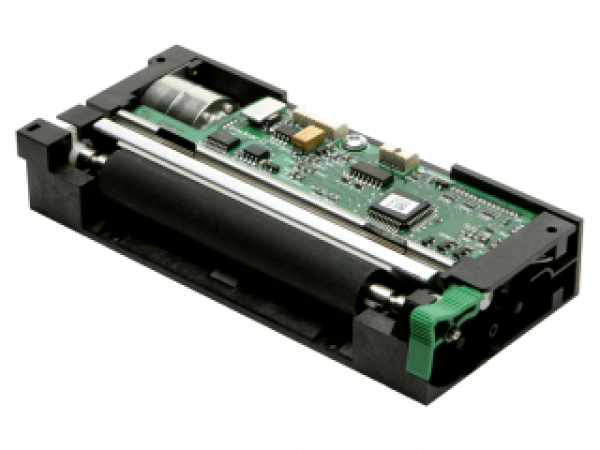

CP305MRS

COMPACT AND LIGHT PRINTER

Caractéristiques

  • Zero current sleep mode
  • Single power supply
  • Label detection
  • Full native and standard Windows drivers
  • Downloadable character set
  • Software programmable energy consumption
  • Print text, graphics and barcode
  • Print speed up to 60 mm/s
  • Compact and light
  • 3 inch paper width

Applications

  • Cash registers
  • Data terminal devices
  • EFT POS
  • ID automation
  • Kiosks
  • Measuring instruments and analysers
  • Medical equipment
  • Ticketing
  • Vending machines
  • Weighing scales

Caractéristiques techniques

Printing method
Thermal
Number of dots
576
Resolution (dots/mm)
8
Printing width (mm)
72
Paper width (mm)
80
Max. paper thickness (um)
80
Paper loading
Automatic
Printing speed (mm/s)
60
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Switch
Voltage range (Logic | Head)
single 5-8.5 V
Weight (g)
80
Life/reliability
50km/ 100M pulses
Operating temperature (°C)
-10 to +60
Operating humidity (%)
20 to 85 non cond.
Dimensions (WxDxH mm)
121x55x20
Cutter
Optional
Expanded Flash memory
No
Expanded RAM memory
No
Character set
3 resident + downloadable
Character size
8x16, 7x16, 12x20
Characters per line (max.)
48, 24, 12/54, 27, 13/32, 16, 8
Interfaces
RS232C, Centronics
Graphics
5 modes
Barcodes
UPCA-E, EAN 13-8, Code 39, ITF 2/5, Codabar, Code
Windows drivers
95 / 98 / ME / XP / NT / 2000
Label/Black mark detection
Yes
Zero power mode (sleep mode)
Yes
Auto wake-up on received data
Yes
Functional keyboard
Yes
