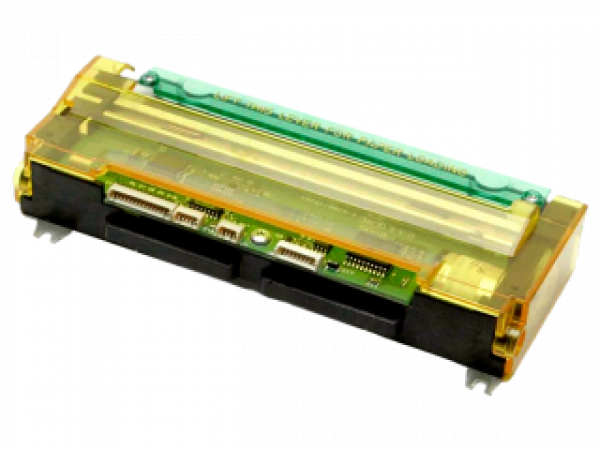

CP405MRS

COMPACT AND LIGHT PRINTER

Caractéristiques

4 inch paper width
Print speed up to 50 mm/s
Downloadable character set
Compact and light
Software programmable energy consumption
Print text, graphics and barcode
Label detection
Full native and standard Windows drivers
Single power supply
Zero current sleep mode

Applications

Cash registers
Data terminal devices
EFT POS
ID automation
Kiosks
Measuring instruments and analysers
Medical equipment
Ticketing
Vending machines
Weighing scales

Caractéristiques techniques

Printing method: Thermal
Number of dots: 832
Resolution (dots/mm): 8
Printing width (mm): 104
Paper width (mm): 114
Max. paper thickness (um): 80
Paper loading: Automatic
Printing speed (mm/s): 60
Paper detection: Opto sensor
Temperature detection: Thermistor
Head-up or Cover-open detection: Switch
Voltage range (Logic | Head): single 5-8.5 V
Weight (g): 150
Life/reliability: 50km/ 100M pulses
Operating temperature (°C): -10 to +60
Operating humidity (%): 20 to 85 non cond.

Dimensions (WxDxH mm): 156x55x27
Cutter: Optional
Expanded Flash memory: No
Expanded RAM memory: No
Character set: 3 resident + downloadable
Character size: 8x16, 7x16, 12x20
Characters per line (max.): 92,46,23 / 104,52,26 / 64,32,16
Interfaces: RS232C, Centronics
Graphics: 5 modes
Barcodes: UPCA-E, EAN 13-8, Code 39, ITF 2/5, Codabar, Code
Windows drivers: 95 / 98 / ME / XP / NT / 2000
Label/Black mark detection: Yes
Zero power mode (sleep mode): Yes
Auto wake-up on received data: Yes
Functional keyboard: Yes
