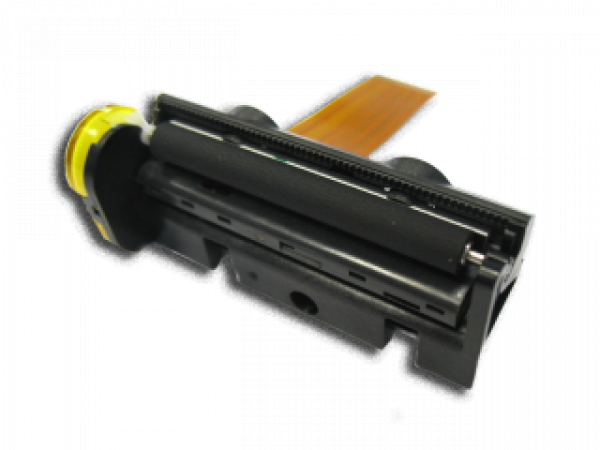

SS205-V4-HS

WORLD’S SMALLEST THERMAL PRINTER DESIGN

SS205-V4-HS
SS205-V4-HS
Demander un devis

Caractéristiques

  • New printhead technology gives very sharp and clear printout
  • Full electrostatic protection
  • Max voltage 9.5 Volts
  • Print speed up to 110 mm/s
  • Prints from 3V
  • Ultra light (26 grams)
  • One single, small pitch FPC
  • 30% power savings
  • Easy paper loading and Easy Door Opening System
  • World’s smallest thermal printer design 68x24x26 (WxDxH)

Applications

  • Automotive
  • Calculators
  • Data terminal devices
  • Digital tachometers
  • EFT POS
  • Fiscal printers
  • Hand held terminals
  • Measuring instruments and analysers
  • Portable printers and terminals
  • Taxi meters

Caractéristiques techniques

Printing method
Thermal
Number of dots
384
Resolution (dots/mm)
8
Printing width (mm)
48
Paper width (mm)
58
Max. paper thickness (um)
80
Paper loading
Easy loading
Printing speed (mm/s)
110
Paper detection
Opto sensor
Temperature detection
Thermistor
Head-up or Cover-open detection
Opto sensor
Voltage range (Logic | Head)
3.0-5.25 V | 5.5-9.5 V
Dot resistance (Ohm)
165 ± 10%
Energy per dot (mJ)
0.18
Stepper motor (Ohm)
Bipolar (19)
Weight (g)
26
Life/reliability
100km/ 200M pulses
Operating temperature (°C)
-30 to +70
Operating humidity (%)
10 to 90 non cond.
Dimensions (WxDxH mm)
68x24x26
Interfaces
RS232, USB
