XS236-H080

HORIZONTAL

Caractéristiques

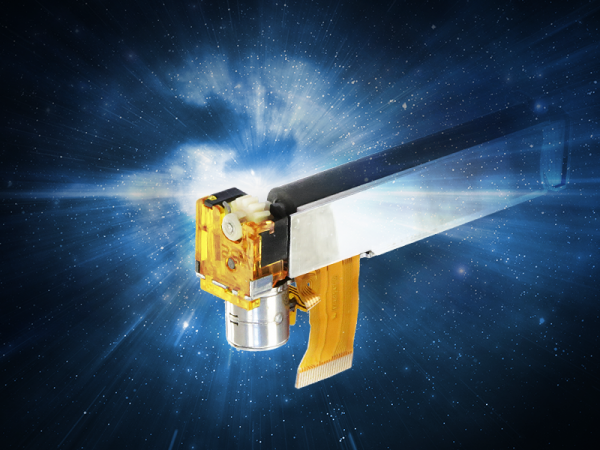

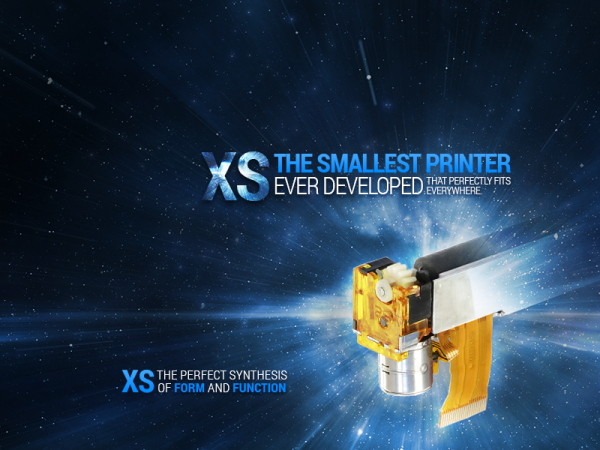

XS is the smallest printer ever developed, that perfectly fits everywhere.
The perfect synthesis of form and function.
XS comes with the most simple construction ever achieved for low voltage 2¨ thermal printer mechanisms.
No opto sensor.
Fully optimized for Ultra Low Voltage drive.
Combined with APS bucket design.
Worm gear train for smooth and silent printing.
Printer chassis frame connected internally to GND.
Fine pitch (0.5mm), small surface and lateral FPC for compact integration.
Gear box Dust protection by design.

Applications

Automotive
Calculators
Data terminal devices
Digital tachometers
EFT POS
Fiscal printers
Hand held terminals
Measuring instruments and analysers
Portable printers and terminals
Taxi meters

Caractéristiques techniques

Printing method: Thermal
Number of dots: 384
Resolution (dots/mm): 8
Printing width (mm): 48
Paper width (mm): 58
Max. paper thickness (um): 60
Paper loading: Easy loading
Printing speed (mm/s): 100
Paper detection: New patented feature
Temperature detection: Thermistor

Head-up or Cover-open detection: New patented feature
Voltage range (Logic | Head): 2.7-5.25/ 2.7-5.3
Dot resistance (Ohm): 80 ± 3%
Energy per dot (mJ): 0.12
Stepper motor (Ohm): Bipolar (3,8)
Weight (g): 30
Life/reliability: 50 km/100M pulses
Operating temperature (°C): -30 to +70 °C
Operating humidity (%): 10 to 90 non cond.
Dimensions (WxDxH mm): 67x26.4x14.1
